BMC FATIH 280
Grup Adı/Group Name :
Şasi ve sürücü kabini / Chassis & cab
Komple Adı/Assy Name :
Gürültü paneli / Noise panel
52RS008376

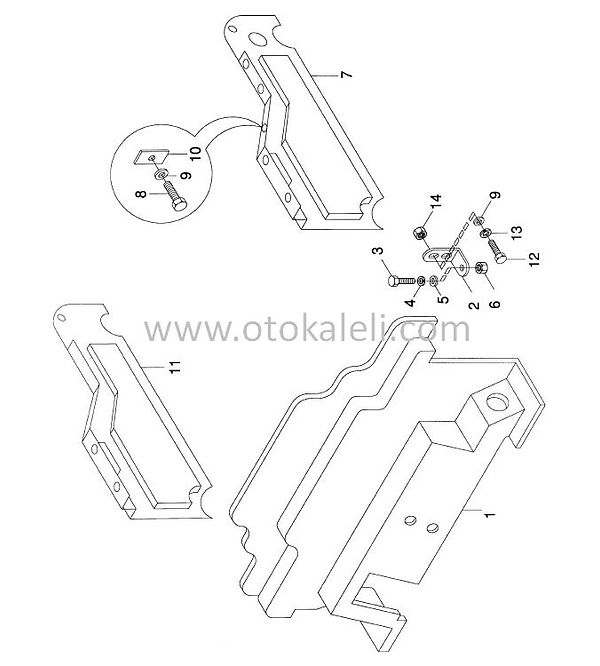

SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
|---|---|---|---|---|---|
1 | 52RS008277 | Gürültü paneli, arka-Kep | Noise panel, rear-Cab | 1 | |
2 | K5E1080 | Braket | Bracket | 2 | |
3 | SH108251 | Cıvata | Screw | 2 | |
4 | WL108002 | Yaylı rondela | Washer, spring | 2 | |
5 | WC108051 | Düz rondela | Washer, plain | 2 | |
6 | NH108041 | Somun | Nut | 2 | |
7 | 52RS008278 | Gürültü paneli, yan-Sağ | Noise panel, side-RH | 1 | |
8 | SH604081 | Cıvata | Screw | 10 | |
9 | PWZ204 | Düz rondela | Washer, plain | 10 | |
10 | 812856 | Çamurluk rondelası | Washer, mudguard | 8 | |
11 | 52RS008279 | Gürültü paneli, yan-Sol | Noise panel, side-LH | 1 | |
12 | SH604061 | Cıvata | Screw | 2 | |
13 | WL600042 | Yaylı rondela | Washer, spring | 2 | |
14 | NH604041 | Somun | Nut | 2 |
Önceki Sayfa/ Previous Page
Sonraki Sayfa/ Next Page
Sayfa/Page
152
