BMC PRO 935 ZHF

Grup Adı/Group Name  :

Motor / Engine

Komple Adı/Assy Name :

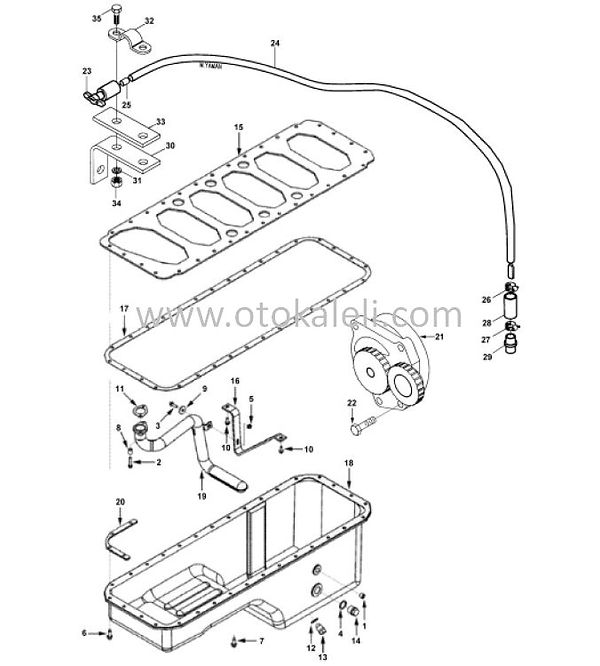

Yağ karteri ve emiş borusu / Oil pan & intake pipe

935OTOLM102I

SEKIL/FIG
PARCA KODU / PART CODE
PARCA ADI
PART NAME
MIKTAR / QTY.
ACIKLAMA / REMARK
1
9P915473
Tapa
Plug
1
2
9P900174
Cıvata
Bolt
2
3
9P900314
Cıvata
Bolt
1
4
9P900374
Bakır rondela
Washer, sealing
1
5
9P900180
Somun
Nut
1
6
9P917489
Cıvata
Screw
16
7
9P901555
Cıvata
Bolt
16
8
9P901857
Mesafe parçası
Spacer
2
9
9P900179
Yaylı rondela
Washer, spring
1
10
9P900153
Cıvata
Bolt
2
11
9P917883
Conta, yağ emiş borusu
Gasket, oil suc connection
1
12
9P900167
Rondela
Washer
1
13
9P900168
Tapa, yağ karteri
Plug, oil pan
1
14
9P900108
Tapa
Plug
1
15
9P917885
Pleyt, gürültü
Plate, noise
1
16
9P901858
Braket, yağ emiş borusu
Bracket, oil suction tube
1
17
9P916469
Conta
Gasket
1
18
9P920371
Yağ karteri
Oil pan
1
19
9P920372
Yağ emiş borusu
Connection, oil suction
1
20
9P920373
Pleyt
Plate, clamping
4
21
9P919223
Yağ pompası
Pump, lubricating oil
1
22
9P900198
Cıvata
Bolt
4
23
57RS305286
Yağ seviye çubuğu
Oil level dipstick
1
24
57RS305287
Hortum, yağ seviye
Hose, oil level
1
25
K8E1036
Burç
Bushing
1
26
B0C282
Kelepçe
Clamp
1
27
B0C284
Kelepçe
Clamp
1
28
2K202913
Plastik burç
Bushing, plastic
1
29
4K99721
Kılavuz, yağ seviye çubuğu
Guide, oil level dipstick
1
30
52RS013710
Braket
Bracket
1
31
WL106002
Yaylı rondela
Washer, spring
3
32
K5E1071
Kelepçe
Clamp
1
33
8M19328
Mesafe parçası
Spacer
1
34
NH106041
Somun
Nut
3
35
SH106201
Cıvata
Screw
3
