BMC FATIH 110-08
Grup Adı/Group Name :
Motor / Engine
Komple Adı/Assy Name :

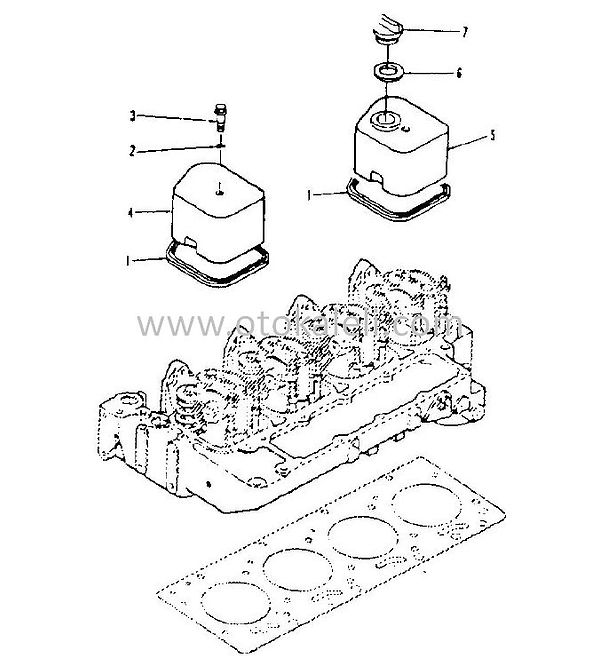

Külbütör kapağı / Rocker cover
2K69255
SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
|---|---|---|---|---|---|
1 | 9P901642 | Conta | Gasket | 4 | |
2 | 9P902428 | O-Ring | O-Ring | 4 | |
2 | 9P900134 | O-Ring | O-Ring | 4 | |
3 | 9P901503 | Cıvata | Bolt | 4 | |
4 | 9P913680 | Kapak | Cover | 3 | |
4 | 9P901640 | Kapak | Cover | 3 | |
5 | 9P901641 | Kapak | Cover | 1 | |
6 | 9P901639 | Keçe | Seal | 1 | |
7 | 9P901474 | Kapak, yağ doldurma | Cap, oil filler | 1 |
Önceki Sayfa/ Previous Page
Sonraki Sayfa/ Next Page
Sayfa/Page
6
