BMC FATIH 110-08

Grup Adı/Group Name :

Yakıt sistemi / Clutch

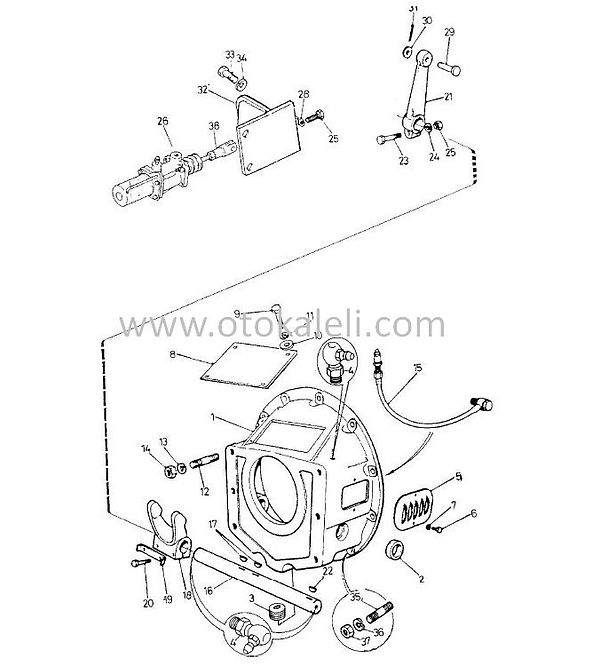

Debriyaj muhafazası / Clutch housing

2K18727

SEKIL/FIG	PARCA KODU / PART CODE	PARCA ADI	PART NAME	MIKTAR / QTY.	ACIKLAMA / REMARK
1	4K51774	Debriyaj muhafazası	Clutch housing	1	(SPICER)
1	K5E8025	Debriyaj muhafazası	Clutch housing	1	(HEMA)
2	4K10792	Burç	Bush	2
3	9P903194	Körtapa	Plug	1
4	UHN490	Gresörlük	Greaser	2
5	27D674	Havalandırma kapağı-KMPL.	Air cover-ASSY.	2
6	SH604041	Cıvata	Screw	4
7	WL600042	Yaylı rondela	Washer, spring	4
8	K8E8001	Üst kapak-KMPL.	Cover, upper-ASSY.	1
9	SH505061	Cıvata	Screw	4
10	WA108051	Düz rondela	Washer, plain	4
11	WL600052	Yaylı rondela	Washer, spring	4
12	9P906918	Saplama	Stud	6
13	WL600102	Yaylı rondela	Washer, spring	6
14	NH610041	Somun	Nut	6
15	K0E8008	Hortum	Hose	1
16	27D683	Debriyaj mili	Shaft, clutch	1
17	4K58280	Kama	Key	2	(WKN608)
18	4K52666	Debriyaj çatalı	Fork, clutch releasing	1	(ZF)
18	61K5646	Debriyaj çatalı	Fork, clutch releasing	1	(HEMA)
19	61K5647	Kilit sacı	Locking plate	1
20	BH605141	Cıvata	Bolt	2
21	4K10083	Levye, debriyaj ayırma	Lever, clutch releasing	1
22	4K58280	Kama	Key	1	(WKN608)
23	BH606161	Cıvata	Bolt	1
24	WL600062	Yaylı rondela	Washer, spring	1
25	NH606041	Somun	Nut	1
26	9P902764	Debriyaj yardımcı silindiri	Cylinder, slave	1
27	SH605071	Cıvata	Screw	4
28	WL600052	Yaylı rondela	Washer, spring	4
29	4K98561	Pim	Pin	1
30	WA110061	Düz rondela	Washer, plain	1
31	PS606051	Kopilya	Split pin	1
32	4K58447	Braket, debri.yar.silin.KMPL.	Bracket, slave cylinder-ASSY.	1
33	SH506071	Cıvata	Screw	2
34	WL600062	Yaylı rondela	Washer, spring	2
35	9P900281	Saplama	Stud	12	(SPICER)
35	9P900212	Saplama	Stud	12	(HEMA)
36	WL110002	Yaylı rondela	Washer, spring	12
37	NH110041	Somun	Nut	12
38	4K87635	Debriyaj çatalı	Fork, slave cylinder	1
