BMC FATIH 110-08
Grup Adı/Group Name :
Elektrik sistemi / Electrical system
Komple Adı/Assy Name :
Enstelasyon ve korna / Harness & horn
3K54531

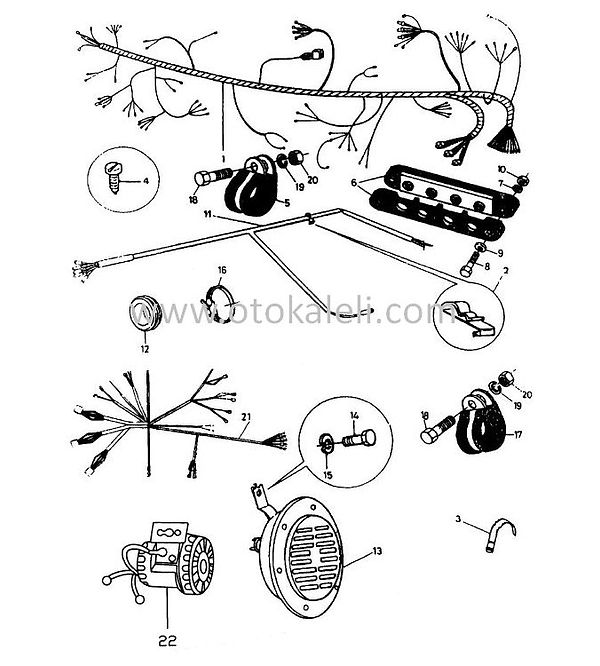

SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
---|---|---|---|---|---|
1 | 52RS005982 | Ana enstelasyon-KMPL. | Main harness-ASSY. | 1 | |
1 | 3K18986 | Ana enstelasyon-KMPL. | Harness-ASSY.Main | 1 | |
2 | K5D2036 | Klips, enstelasyon tutucu | Clip-Harness | 5 | |
3 | B0C322 | Plastik kelepçe | Clamp, plastic | 5 | |
4 | SE105101 | Vida | Screw | 5 | |
5 | B0C1484 | Kelepçe, plastik | Clamp, plastic | 7 | |
6 | K0D4033 | Köprü-KMPL. | Link-ASSY. | 1 | |
7 | WL105002 | Yaylı rondela | Washer, spring | 3 | |
8 | SE105251 | Vida | Screw | 2 | |
9 | WA105001 | Düz rondela | Washer, plain | 2 | |
10 | NH105041 | Somun | Nut | 2 | |
11 | 3K62104 | Enstelasyon-KMPL.Gövde | Harness-ASSY.Chassis | 1 | |
12 | K1C7131 | Gromet | Grommet | 2 | |
13 | 3K51876 | Korna-KMPL.İnce | Horn-ASSY. | 1 | |
14 | 3K51875 | Korna-KMPL.Kalın | Horn-ASSY. | 1 | |
14 | SH604051 | Cıvata | Screw | 2 | |
15 | WL600042 | Yaylı rondela | Washer, spring | 2 | |
16 | B0C1456 | Lastik kelepçe | Rubber, clamp | 1 | |
17 | B0C1463 | Kelepçe | Clamp | 5 | |
18 | SH604101 | Cıvata | Screw | 5 | |
19 | WL600042 | Yaylı rondela | Washer, spring | 5 | |
20 | NH604041 | Somun | Nut | 5 | |
21 | 3K55539 | Kablo-KMPL.PTO | Cable-ASSY.PTO | 1 | |
22 | 51RS300228 | Geri vites ikaz kornası | Reverse gear warning horn | 1 |
