BMC FATIH 170-25
Grup Adı/Group Name :
Arka dingil / Rear axle
Komple Adı/Assy Name :
Diferansiyel / Differential
4K55882M

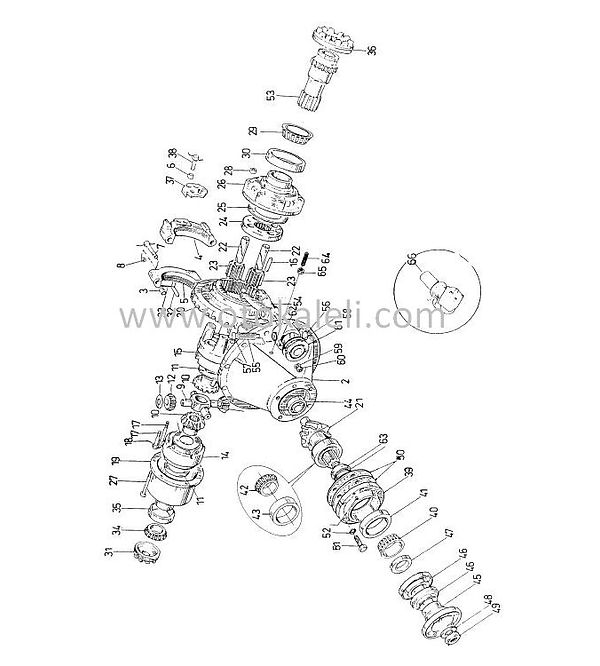

SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
|---|---|---|---|---|---|
1 | 4K15436 | Diferansiyel karpuzu-KMPL. | Differential carrier-ASSY. | 1 | |
2 | 4K15291 | Diferansiyel karpuzu | Differential carrier | 1 | |
3 | 4K15437 | Burç | Bush | 2 | |
4 | 4K15438 | Sağ kep | Bearing cap-RH | 1 | (NSP) |
5 | 4K15440 | Sol kep | Bearing cap-LH | 1 | (NSP) |
6 | 4K15442 | Burç | Bush | 2 | |
7 | 4K15443 | Cıvata | Bolt | 4 | |
8 | 4K15444 | Rondela | Washer | 4 | |
9 | 4K55878 | İstavroz | Spider | 1 | |
10 | 4K15446 | Aks dişlisi | Pinion gear | 2 | |
11 | 4K15469 | Aks baskı rondelası | Washer,thrust | 3 | (Alt:4K56993) |
12 | 4K55877 | İstavroz dişlisi | Gear,spider | 4 | |
13 | 4K55883 | Baskı pulu | Washer,thrust | 4 | |
14 | 4K55880 | İstavroz kutusu-Sağ | Gear support cage-RH | 1 | |
15 | 4K55881 | İstavroz kutusu-Sol | Gear support cage-LH | 1 | |
16 | 4K15455 | Yük.hız kavr.pla.pimi | Pin,high speed clutch plate | 4 | |
17 | 35E120 | Cıvata | Bolt | 8 | |
18 | 35E119 | Bağlama cıvatası (Kısa) | Diff.case cap screw (Short) | 4 | |
19 | 4K15458 | Takviye tenceresi-Sağ | Gear support case-RH | 1 | |
20 | 4K14944 | Ayna | Crown wheel | 1 | (Takımsatılır.) |
21 | 4K14943 | Mahruti | Pinion | 1 | (Takımsatılır.) |
22 | 4K15461 | Planet dişli pimi | Idler pinion pin | 4 | |
23 | 4K15462 | Planet dişlisi | Idler pinion | 4 | |
24 | 4K15463 | Yük.hız.kav.plakası | High speed clutch plate | 1 | |
25 | 4K15464 | Yük.hiz.kav.pla.baskı pulu | High speed clutch plate washer | 1 | |
26 | 4K15465 | Takviye tenceresi,sol | Gear support case-LH | 1 | |
27 | 4K15467 | Cıvata | Bolt | 8 | |
28 | NV609041 | Sıkmalı somun | Nut, lock | 8 | |
29 | Z00286 | Sağ rulman (İç) | Right bearing (İnner) | 1 | |
30 | 4K57560 | Rulman-dış | Bearing-Outer | 1 | |
31 | 35E118 | Yatak ayar somunu | Nut | 1 | |
32 | 35E126 | Kilitleme sacı | Adjusting ring lock | 1 | |
33 | PS110321 | Kopilya | Split pin | 1 | (Alt.) |
34 | 4K15474 | Sol rulman (iç) | Diff.bearing,inner-LH | 1 | |
35 | 4K15475 | Sol rulman (Dış) | Diff.bearing,outer-LH | 1 | |
36 | 4K15476 | Ayar somunu-Sol | Nut, adjuster-LH | 1 | |
37 | 4K15477 | Ayar somunu kilit sacı | Adjuster lock | 1 | |
38 | 4K15478 | Kilit sacı bağl.cıvatası | Adjuster lock screw | 1 | |
39 | 4K15480 | Rulman muhafazası | Bearing cage | 1 | |
40 | 4K15482 | Rulman (iç) | Bearing cone | 1 | |
41 | 4K15483 | Rulman (Dış) | Bearing cup | 1 | |
42 | 4K15484 | Rulman (iç) | Bearing cone | 1 | |
43 | 4K15485 | Rulman (Dış) | Bearing cup | 1 | |
44 | 4K15486 | Mahruti uç rulmanı | Pinion spigot bearing | 1 | |
45 | 4K15488 | Bağlama flanşı | Coupling flange | 1 | |
46 | 35E147 | Çamur sıyırıcı | Oil pick-up trough | 1 | |
47 | 4K15490 | Yağ keçesi | Oil seal | 1 | |
48 | 4K15491 | Rondela | Washer | 1 | |
49 | 4K15492 | Mahruti somunu | Pinion nut | 1 | |
50 | 4K15496 | Ayar şimi | Shim | 1 | (0.50İnç/Inch) |
50 | 4K15493 | Ayar şimi | Shim,adjusting | 1 | (0.05İnç/Inçh) |
50 | 4K15495 | Ayar şimi | Shim | 1 | (0.20İnç/Inch) |
50 | 4K15494 | Ayar şimi | Shim | 1 | (0.10İnç/Inch) |
51 | BX509131 | Bağlama cıvatası | Bolt,mounting | 1 | |
52 | WL600092 | Yaylı rondela | Washer, spring | 1 | |
53 | 4K15498 | Takviye kavramı dişlisi | Sliding clutch gear | 1 | |
54 | 4K15500 | Takviye çatalı | Shift fork & roller | 1 | |
55 | 4K15503 | Takviye çatalı pimi | Pin,shift fork | 1 | |
55 | 4K15502 | Takviye çatalı pimi | Pin,shift fork | 2 | |
56 | 4K15504 | Esneme tapası (Alt) | Plug,expansion-Lower | 1 | |
57 | 35E132 | Esneme tapası (Üst) | Plug,expansion-Upper | 1 | |
58 | 35E134 | Takviye contası | Gasket | 1 | |
59 | WA600071 | Rondela | Washer | 2 | |
60 | NH607041 | Somun | Nut | 2 | |
61 | 4K15506 | Yağ keçesi-Takv.çatalı | Seal-Shift fork | 1 | |
62 | 4K15457 | Saplama | Stud | 2 | |
62 | 4K15508 | Segman-Takv.çatalı | Circlip-Shift fork | 1 | |
63 | 4K15512 | Mahruti rulman ara parç. | Pinion bearing spacer | 1 | (14.35İnç/Inch) |
63 | 4K15511 | Mahruti rulman ara parça. | Pinion bearing spacer | 1 | (14.30İnç/Inch) |
63 | 4K15514 | Mahruti rulman ara parç. | Pinion bearing spacer | 1 | (14.45İnç/Inch) |
63 | 4K15510 | Mahruti rulman ara parç. | Pinion bearing spacer | 1 | (14.25İnç/Inch) |
63 | 4K15516 | Mahruti rulman ara parç. | Pinion bearing spacer | 1 | (14.55İnç/Inch) |
63 | 4K15513 | Mahruti rulman ara parç. | Pinion bearing spacer | 1 | (14.40İnç/Inch) |
63 | 4K15509 | Mahruti rulman ara parç. | Pinion bearing spacer | 1 | (14.20İnç/Inch) |
63 | 4K15515 | Mahruti rulman ara parç | Pinion bearing spacer | 1 | (14.50İnç/Inch) |
64 | 4K55288 | Dayanma saplaması | Stud | 1 | |
65 | NT118041 | Somun | Nut | 1 | |
66 | 4K60723 | Takviye-KMPL. | Shift unit-ASSY. | 1 | |
* | 4K15460 | Ayna mahruti takımı-KMPL. | Crown wheel, pinion-ASSY. | 1 | (Alt:4K85169) |
* | 4K55879 | İstavroz kutusu-KMPL. | Differential case-ASSY. | 1 | |
1-65 | 4K55882 | Diferansiyel-KMPL. | Differential-ASSY. | 1 | |
x11 | 4K55506 | Aks baskı rondelası | Washer,thrust | 3 | |
x11 | 4K55507 | Aks baskı rondelası | Washer,thrust | 3 |
