BMC FATIH 170-25
Grup Adı/Group Name :
Şasi ve sürücü kabini / Chassis & cab
Komple Adı/Assy Name :
Tavan döşemeleri / Headlining

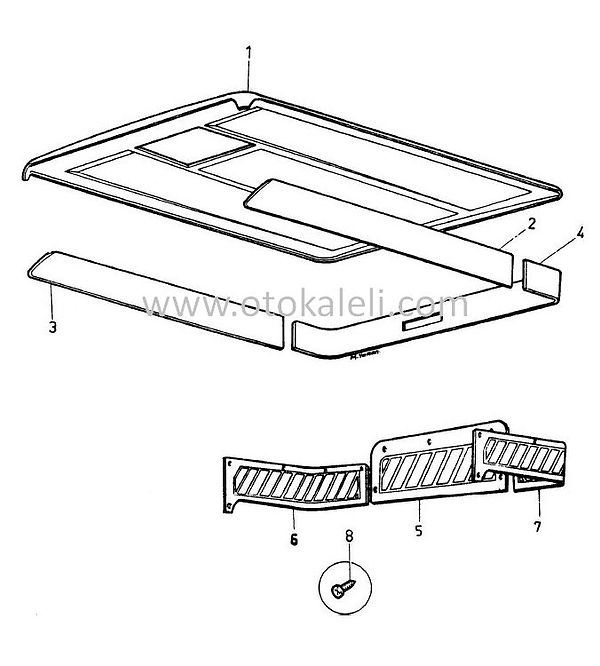

K0B6028
SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
|---|---|---|---|---|---|
1 | 8K57661 | Tavan döşemesi | Headlining | 1 | |
1 | 8K57982 | Tavan döşemesi | Headlining, roof | 1 | |
2 | 8K57985 | Tavan döşemesi-Sol | Headlining, roof-LH | 1 | |
2 | 8K57658 | Tavan döşemesi-Sol | Headlining, roof-LH | 1 | |
3 | 8K57984 | Tavan döşemesi-Sağ | Headlining, roof-RH | 1 | |
3 | 8K57660 | Tavan döşemesi-Sağ | Headlining, roof-RH | 1 | |
4 | 8K57659 | Tavan döşemesi, arka | Headlining, roof-Rear | 1 | |
4 | 8K57659 | Tavan döşemesi, arka | Headlining, roof-Rear | 1 | |
5 | K5B6061 | Arka döşeme-Orta | Padtrim, rear-Center | 1 | |
5 | K0B6002 | Arka döşeme-Orta | Pad trim-Centre | 1 | |
6 | K0B6015 | Arka döşeme-Sağ | Pad trim-RH | 1 | |
6 | K5B6062 | Arka döşeme-Sağ | Padtrim, rear corner-RH | 1 | |
7 | K5B6060 | Arka döşeme-Sol | Padtrim, rear corner-LH | 1 | |
7 | K0B6016 | Arka döşeme-Sol | Pad trim-LH | 1 | |
8 | K1B9000 | Sac vidası | Screw | 21 | (REF:12/10) |
8 | K1B9000 | Sac vidası | Screw | 15 | (REF:12/10) |
* | 8K11744 | Dübel | Clip | 25 | |
* | 8M67803 | Dübel, yuva | Fastener | 25 | |
* | 8M67803 | Dübel, yuva | Fastener | 25 | |
* | 8K98314 | Dübel | Fastener | 25 | |
* | 8K11744 | Dübel | Clip | 20 | |
* | 8K98314 | Dübel | Fastener | 25 | |
1-4 | 8R57981 | Tavan döşeme seti-KMPL. | Headlining, roof set-ASSY. | 1 | (FDT/FDX) |
1-4 | 8R57657 | Tavan döşeme seti-KMPL. | Headlining, roof set-ASSY. | 1 | (SHT/SDT) |
5-7 | B0B1117 | Döşeme seti, arka-KMPL. | Pad trim set, rear-ASSY. | 1 |
