BMC FATIH 180

Grup Adı/Group Name  :

Motor / Engine

Komple Adı/Assy Name :

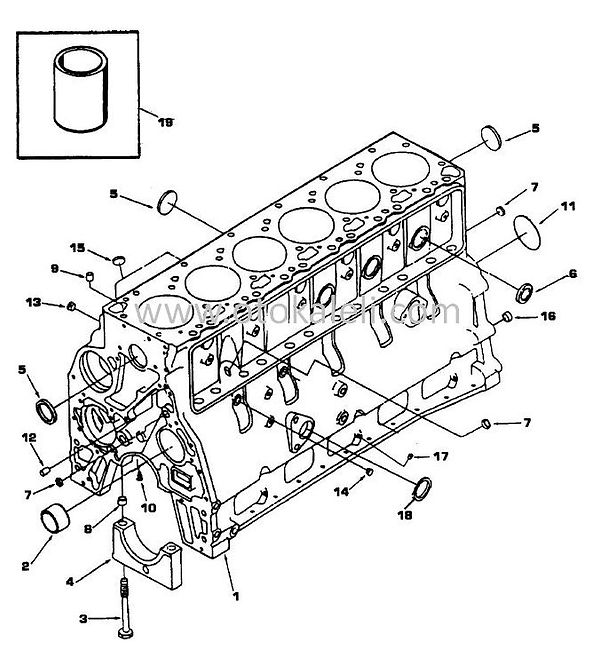

Silindir bloğu / Cylinder block

2K62283A

SEKIL/FIG
PARCA KODU / PART CODE
PARCA ADI
PART NAME
MIKTAR / QTY.
ACIKLAMA / REMARK
1
2K98656
Silindir bloğu
Cylinder block
1
2
9P904322
Burç
Bushing
1
3
9P910903
Kep cıvatası
Cap bolt
14
4
9P915151
Ana yatak kebi
Cap, main bearing
7
5
2M53081
Tapa
Plug
5
6
9P910904
Tapa, genleşme
Plug, expansion
4
7
9P901456
Tapa, genleşme
Plug, expansion
3
8
9P903826
Merkezleme halkası
Ring, centering
14
9
9P901477
Merkezleme halkası
Dowel, ring
2
ESKİ TİP/OLD TYPE
9
9P918430
Merkezleme halkası
Dowel, ring
2
YENİ TİP/NEW TYPE
10
9P909709
Piston soğutma memesi
Nozzle, piston cooling
6
11
9P901452
Tapa, genleşme
Plug, expansion
1
12
9P900009
Merkezleme pimi
Dowel pin
2
13
9P904323
Kör tapa
Plug
2
14
180759
Tapa
Plug
2
15
9P900001
Tapa, genleşme
Plug, expansion
1
16
9P901444
Merkezleme halkası
Dowel, ring
2
17
9P901455
Tapa, genleşme
Plug, expansion
2
18
9P910907
Tapa, genleşme
Plug, expansion
1
19
9P901485
Silindir gömleği
Liner, cylinder
6
Servis/Service(STD:102mm.)
*
57RS302694
Motor kiti
Engine kit
1
