BMC FATIH 180

Grup Adı/Group Name  :

Motor / Engine

Komple Adı/Assy Name :

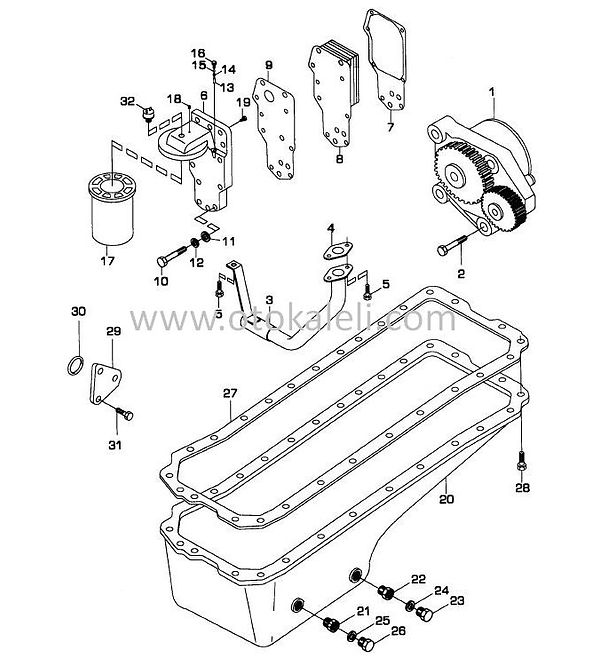

Motor yağlama sistemi / Engine lubricating system

57RS302726

SEKIL/FIG
PARCA KODU / PART CODE
PARCA ADI
PART NAME
MIKTAR / QTY.
ACIKLAMA / REMARK
1
9P904356
Yağ pompası
Pump, lubricating oil
1
2
9P900198
Cıvata
Bolt
4
3
9P917373
Yağ emiş borusu
Pipe, oil intake
1
YENİ TİP/NEW TYPE
3
2K56826
Yağ emiş borusu
Tube, suction
1
ESKİ TİP/OLD TYPE
4
9P904023
Conta
Gasket
1
5
9P901818
Cıvata
Bolt
3
6
9P901547
Yağ filtre başlığı
Head, lubrication oil filter
1
7
9P901829
Conta
Gasket
1
8
9P901563
Yağ soğutucusu
Oil cooler
1
9
9P901830
Conta
Gasket
1
10
BH108061
Cıvata
Bolt
2
10
BH108081
Cıvata
Bolt
12
11
W A108051
Düz rondela
W asher, plain
14
12
W L108002
Yaylı rondela
W asher, spring
14
13
9P901545
Basınç ayar plancırı
Pressure regulator plunger
1
14
9P901575
Yay
Spring
1
15
9P901596
O-Ring
O-Ring
1
16
9P901538
Dişli tapa, yağ soğutucusu
Plug-Oil cooler
1
17
9P901831
Yağ filtresi
Oil filter
1
18
9P901501
Tapa, boru
Plug, pipe
1
19
9P905525
Basınç emniyet valfi
Valve, by-pass
1
20
9P901832
Yağ karteri
Oil pan
1
21
2K12923
Flanş, karter için
Flange, for oil pan
1
22
2K12924
Flanş, karter için
Flange, for oil pan
1
23
9P900168
Tapa, yağ karteri
Plug, oil pan
1
24
9P900167
Rondela
W asher
1
25
9P900374
Bakır rondela
W asher, sealing
1
26
9P902411
Tapa
Plug
1
27
9P901833
Conta
Gasket
1
28
9P901555
Cıvata
Bolt
34
29
2K53287
Kapak
Cover
1
30
2K56326
O-Ring
O-Ring
1
31
9P900143
Cıvata
Bolt
2
32
57RS005547
Yağ basınç müşiri
Oil pressure sensor
1
*
9P901636
Yağ karteri-KMPL.
Oil pan-ASSY.
1
