BMC FATIH 200-26
Grup Adı/Group Name :
Motor / Engine
Komple Adı/Assy Name :
Silindir bloğu / Cylinder block
2K62283M

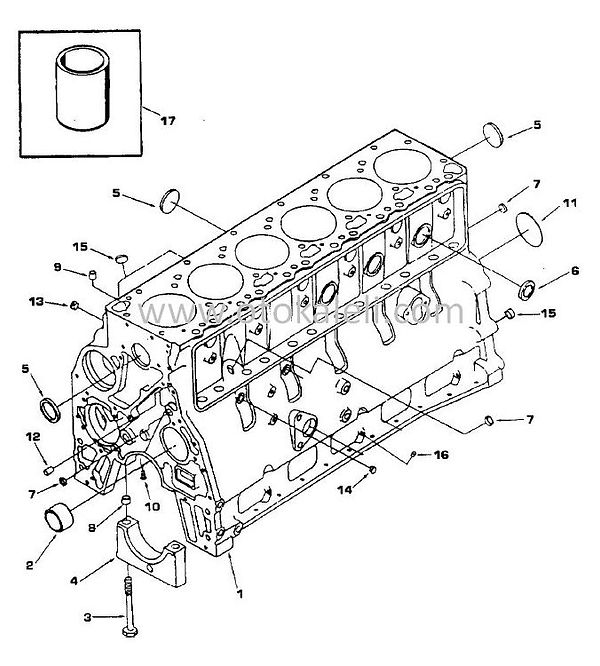

SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
|---|---|---|---|---|---|
1 | 2K98656 | Silindir bloğu | Cylinder block | 1 | |
1 | 9P902864 | Silindir bloğu | Block,cylinder | 1 | |
1 | 9P901811 | Silindir bloğu | Cylinder block | 1 | |
2 | 9P901470 | Burç | Bushing | 1 | |
3 | 9P901486 | Kep cıvatası | Cap screw | 14 | |
4 | 9P901457 | Ana yatak kebi | Cap, main bearing | 7 | |
5 | 9P900095 | Tapa, genleşme | Plug, expansion | 6 | |
6 | 9P902865 | Tapa, genleşme | Plug,expansion | 4 | |
7 | 9P901456 | Tapa, genleşme | Plug, expansion | 3 | |
8 | 9P901444 | Merkezleme halkası | Dowel, ring | 14 | |
9 | 9P901477 | Merkezleme halkası | Dowel, ring | 2 | |
10 | 9P901812 | Piston soğutma memesi | Nozzle, piston cooling | 6 | |
10 | 9P909709 | Piston soğutma memesi | Nozzle, piston cooling | 6 | YENİTİP/NEWTYPE |
10 | 9P901550 | Piston soğutma memesi | Nozzle, piston cooling | 6 | ESKİTİP/OLDTYPE |
11 | 9P901452 | Tapa, genleşme | Plug, expansion | 1 | |
12 | 9P900009 | Merkezleme pimi | Dowel pin | 2 | |
13 | 9P900011 | Tapa | Plug | 1 | |
14 | 180759 | Tapa | Plug | 2 | |
15 | 9P901444 | Merkezleme halkası | Dowel, ring | 2 | |
16 | 9P901455 | Tapa, genleşme | Plug, expansion | 2 | |
17 | 9P901485 | Silindir gömleği | Liner, cylinder | 6 | Servis/Service(STD.102mm. |
