BMC FATIH 200-26

Grup Adı/Group Name  :

Vites kutusu / Gearbox

Komple Adı/Assy Name :

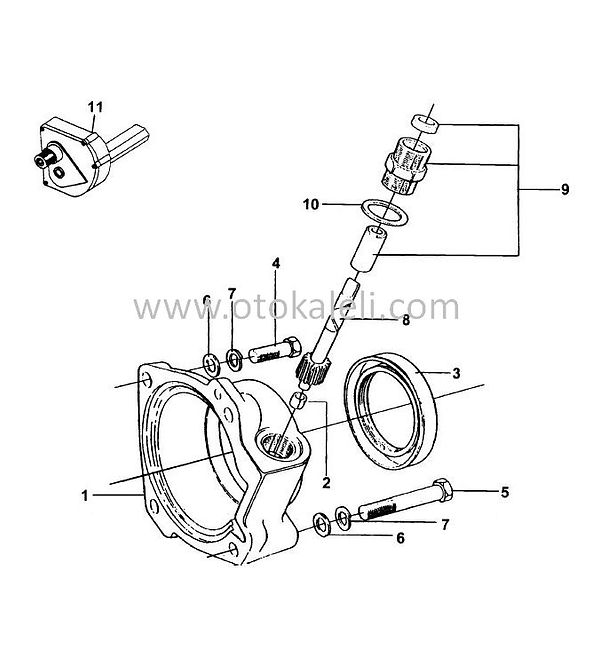

Km.hız kutusu (eaton 4106) / Kilomet.speed box (eaton 4106)

4K60410-1

SEKIL/FIG
PARCA KODU / PART CODE
PARCA ADI
PART NAME
MIKTAR / QTY.
ACIKLAMA / REMARK
1
9P900524
Klm.hız kutu(mekan.)-Vit.kutu
Speedo housing-Gear box
1
2
9P900096
Burç-Vites kutusu
Bush-Gear box
1
3
9P901616
Yağ keçesi, vites kutusu
Oil seal, gear box
1
4
9P900780
Cıvata
Bolt
3
ESKİTİP/OLDTYPE
5
9P901020
Cıvata
Bolt
1
6
9P900783
Rondela
Washer
4
ESKİTİP/OLDTYPE
7
9P900796
Yaylı rondela
Washer, spring
4
8
9P903538
Kilometre dişlisi
Speedo pinion
1
8
9P900802
Kilometre dişlisi-Kamalı mil
Speedo pinion-Main shaft
1
9
9P901607
Kilometre hız adaptörü-KMPL.
Kilometer speedo adapter-ASSY
1
10
9P900922
Bakır rondela, vites kutusu
Washer, copper
1
11
4K91100
Klm.adaptörü
Speedo adapter
1
11
4K86307
Klm.adaptörü
Speedo adapter
1

Önceki Sayfa/ Previous Page

Sonraki Sayfa/ Next Page

Sayfa/Page

40
