BMC FATIH 220-26
Grup Adı/Group Name :
Vites kutusu / Gearbox
Komple Adı/Assy Name :
Pto-kmpl. / Power take off-assy.
4K88840A

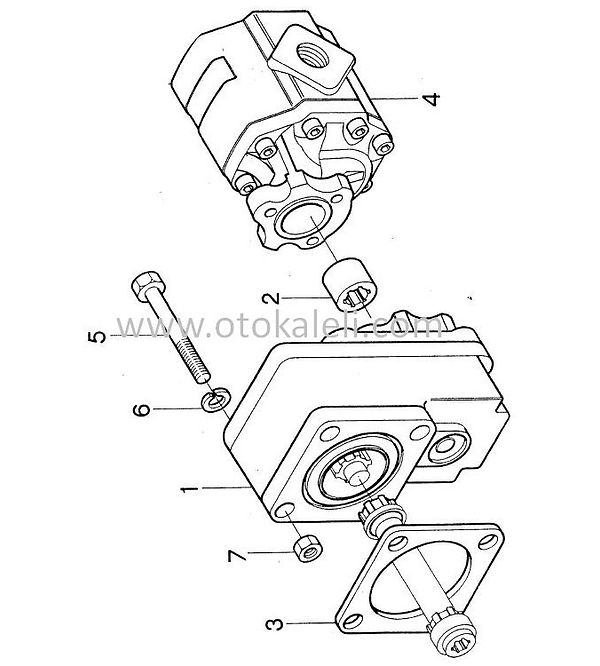

SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
|---|---|---|---|---|---|
1 | 4K88841 | P.T.O.Komple | Power take off-ASSY. | 1 | (MURAT-CASAPPA) |
1 | 4K88843 | P.T.O.Komple | Power take off-ASSY. | 1 | (TOMAY-CASAPPA) |
1 | 4K88846 | P.T.O.Komple | Power take off-ASSY. | 1 | (TOMAY-HEMA) |
1 | 4K88816 | P.T.O.Komple | Power take off-ASSY. | 1 | (MURAT-HEMA) |
1 | 52RS001324 | P.T.O.Komple | Power take off-ASSY. | 1 | |
1 | 4K14996 | P.T.O.Komple | Power take off-ASSY. | 1 | |
2 | 4K53336 | Kaplin | Coupling | 1 | (TOMAY-MURAT-CASAPPA |
3 | 4K66615 | Conta | Gasket | 1 | |
4 | 4K207165 | Pompa, hidrolik kaldırma | Pump, hydraulic lifting | 1 | |
4 | 4K12835 | Pompa hidrolik kaldırma | Pump-P.T.O. | 1 | |
4 | 9K55540 | Pompa, hidrolik kaldırma | Pump-P.T.O. | 1 | (CASAPPA) |
5 | 9P907574 | Saplama | Stud | 9 | |
6 | WL110002 | Yaylı rondela | Washer, spring | 9 | |
7 | NH110041 | Somun | Nut | 9 | |
2X | 4K88211 | Kaplin | Coupling | 1 | (TOMAY-MURAT-HEMA) |
