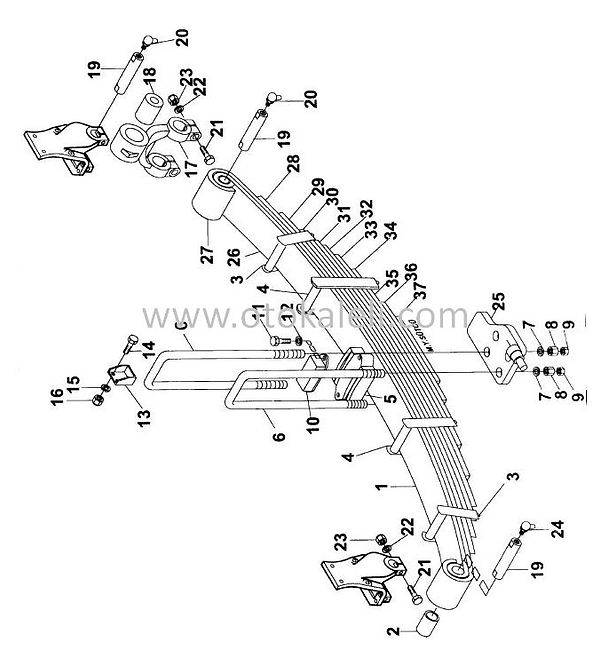

BMC FATIH 220-26

Grup Adı/Group Name  :

Ön dingil / Front axle

Komple Adı/Assy Name :

Ön makaslar / Front springs

7K13800

SEKIL/FIG
PARCA KODU / PART CODE
PARCA ADI
PART NAME
MIKTAR / QTY.
ACIKLAMA / REMARK
1
7K99675
Ön makas-KMPL.
Front spring-ASSY.
2
(SCX)
1
7K55364
Ön makas-KMPL.
Front spring-ASSY.
2
(SDX/SHX/SHT/SDT/SDB)
2
7K10057
Burç, ön sustaya
Bush
2
3
7K10069
Kelepçe
Clamp
4
4
7K10070
Kelepçe
Clamp
4
5
7K10054
Takoz-Ön makas
Saddle-Front spring
2
6
7K16255
U-Cıvata
U-Bolt
2
(SDX/SHX/SHT/SDT/SDB)
6
7K10061
U-Cıvatası
U-Bolt
2
(SCX)
7
K0C2066
Düz rondela
Washer, plain
8
8
K5C2219
Somun
Nut
8
9
7K16249
Somun
Nut
8
10
K8C1011
Dayanma takozu
Saddle
2
11
SH606051
Cıvata
Screw
4
12
WL600061
Yaylı rondela
Washer, spring
4
13
K0C3048
Braket-KMPL.
Bracket-ASSY.
2
14
BH604091
Cıvata
Bolt
4
15
WL600041
Yaylı rondela
Washer, spring
4
16
NH604041
Somun
Nut
4
17
7K10055
Küpe, ön makas-KMPL.
Shackle, front spring-ASSY.
2
(SDX/SHX/SHT/SDT/SDB)
17
7K20130
Küpe, ön makas-KMPL.
Shackle-ASSY.Front spring
2
(SCX)
18
7K10057
Burç, ön sustaya
Bush
2
19
7K10236
Perno
Pin
6
20
2H2828
Gresörlük
Greaser
6
21
BH607201
Cıvata
Bolt
12
22
WL600071
Yaylı rondela
Washer, spring
12
23
NH607041
Somun
Nut
12
24
2H2791
Gresörlük
Nippel, greaser
1
25
6K55361
Amortisör pleyti-Sol
Plate-LH.Shock absorber
1
26
7K204159
1 nolu yaprak
Leaf no:1
2
27
7K204160
2 nolu yaprak
Leaf no:2
2
28
7K204161
3 nolu yaprak
Leaf no:3
2
29
7K204162
4 nolu yaprak
Leaf no:4
2
30
7K204163
5 nolu yaprak
Leaf no:5
2
31
7K204164
6 nolu yaprak
Leaf no:6
2
32
7K204165
7 nolu yaprak
Leaf no:7
2
33
7K204166
8 nolu yaprak
Leaf no:8
2
34
7K204167
9 nolu yaprak
Leaf no:9
2
35
7K204168
10 nolu yaprak
Leaf no:10
2
36
7K204169
11 nolu yaprak
Leaf no:11
2
37
7K204170
12 nolu yaprak
Leaf no:12
2
25_
6K55360
Amortisör pleyti-Sağ
Plate-RH.Shock absorber
1
