BMC FATIH 220-26
Grup Adı/Group Name :
Şasi ve sürücü kabini / Chassis & cab
Komple Adı/Assy Name :
S/k (tavan ve arka paneller) / Cab (roof & rear panels)
24K5368A

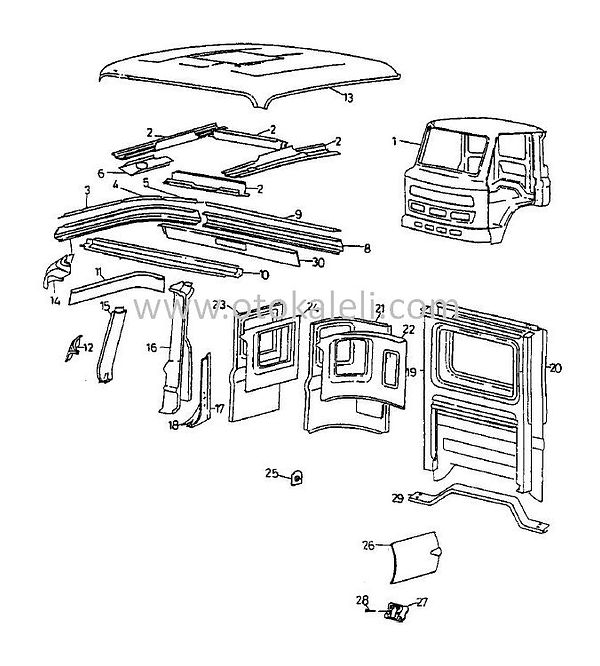

SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
|---|---|---|---|---|---|
1 | 220SXXSG100 | S/K yataklı boyalı kep | Driver's cab, printed incl.bed | 1 | ESKİTİP/OLDTYPE |
1 | 8K204312 | S/K yataklı isk.yapı.mont.KMPL | Driver's cab, driver struct. | 1 | |
1 | 8K86162 | S/K yataklı astarlı kep-KMPL. | Driver's cab, prime coat.incl. | 1 | |
1 | 220SXXSG400 | S/K yataklı boyalı kep | Driver's cab, printed incl.bed | 1 | YENİTİP/NEWTYPE |
1 | 8K68924 | S/K yataklı kapılı kep-KMPL. | Driver's cab door mount.incl. | 1 | |
1 | 8K204311 | S/K yataklı kapısız kep-KMPL. | Driver's cab, Without door | 1 | |
1 | 8K68411 | S/K yataklı isk.yapı.mont.KMPL | Driver's cab, driver struct. | 1 | |
1 | 220SXXLT100 | S/K trimli | Driver's cab, trim | 1 | |
1 | 220SXXSG300 | S/K yataklı boyalı kep | Driver's cab, printed incl.bed | 1 | ESKİTİP/OLDTYPE |
1 | 8K68410 | S/K yataklı kapısız kep-KMPL. | Driver's cab, Without door | 1 | |
1 | 8K204310 | S/K yataklı kapılı kep-KMPL. | Driver's cab door mount.incl. | 1 | |
2 | 8K10823 | Panel, tavan çerçevesi-KMPL. | Panel, roof frame-ASSY. | 1 | |
2 | 8K201480 | Panel, tavan çerçevesi-KMPL. | Panel, roof frame-ASSY. | 1 | |
3 | 8K10703 | Seren yan alt parça-Sağ | Panel,side lower-RH | 1 | |
4 | 8K10701 | Seren alt parça-Sağ | Panel,lower-RH | 1 | |
5 | 8K10699 | Seren arka köşe alt-Sağ | Panel,rear corner lower-RH | 1 | |
6 | 8K16492 | Radyo bağlantı braketi | Radio mounting bracket | 1 | |
7 | 8K10487 | Tavan yan çerçevesi-Sağ | Roof side frame-RH | 1 | |
8 | 8K10654 | Tavan çerçevesi arka | Roof frame,rear | 1 | |
9 | 8K10671 | Arka orta tavan sereni | Panel,rear middle roof | 1 | |
10 | 24K5118 | Panel, iç-Üst | Panel upper-Inner | 1 | |
11 | 8K10635 | Tavan çerçeve yan kapat-Sağ | Roof frame side closing-RH | 1 | |
12 | 8K10210 | Ön baba iç köşe kapağı-Sağ | Front pillar corner cover-RH | 1 | |
13 | 8K16652 | Panel,tavan | Panel,roof | 1 | |
14 | 24K5190 | Ön baba iç takviye-Sağ | Front pillar, inner reinfor.RH | 1 | |
15 | 8K10410 | Tavan çerçevesi,ön baba kapağı | Roof frame, front pillar cover | 1 | |
16 | 8K10364 | Panel, arka baba-KMPL.Sağ | Panel, rear pillar-ASSY.RH | 1 | |
17 | 24K5164 | Panel, arka baba kaplama-Sağ | Panel, rear pillar cover-RH | 1 | |
18 | 24K5192 | Panel, arka baba kapatma-Sağ | Panel, rear pillar closed-RH | 1 | |
19 | 8K10228 | Panel, arka orta iç | Panel, rear center inner | 1 | |
20 | 8K10199 | Arka orta dış panel | Panel, rear center outer | 1 | |
21 | 8K10223 | Panel, arka köşe dış-Sağ | Panel, rear corner outer-RH | 1 | |
22 | K5A1349 | Arka köşe iç panel-Sağ | Inner panel, rear corner-RH | 1 | |
23 | 8K10046 | Dış uzatma paneli-Sağ | Panel, outer extension-RH | 1 | |
24 | 8K10044 | İç uzatma paneli-Sağ | Panel, inner extension-RH | 1 | |
25 | K5A1720 | Pleyt, emniyet kemeri | Plate, seat belt | 1 | |
26 | 8K10883 | Kapak, yağ doldurma | Cover, oil filling | 1 | |
27 | 8K11879 | Menteşe-KMPL. | Hinge-ASSY. | 1 | |
28 | SE105141 | Vida | Screw | 2 | |
29 | 8K11819 | Kapatma parçası | Closing part | 1 | |
30 | 8K10133 | Tavan çerçeve arka panel | Roof frame, rear panel | 1 | |
* | 8K16494 | Tavan hava takviye sacı-Uzun | Reinforcement panel, roof-Long | 2 | |
* | 8K16788 | Tavan hava takviye sacı-Kısa | Reinforcement panel,roof-Short | 2 | |
11_ | 8K10636 | Tavan çerçeve yan kapat-Sol | Roof frame side closing-LH | 1 | |
12_ | 8K10211 | Ön baba iç köşe kapağı-Sol | Front pillar corner cover-LH | 1 | |
13_ | 8K16651 | Panel, tavan-KMPL. | Panel, roof-ASSY. | 1 | |
14_ | 24K5191 | Ön baba iç takviye-Sol | Front pillar, inner reinfor.LH | 1 | |
16_ | 8K10365 | Panel, arka baba-KMPL.Sol | Panel, rear pillar-ASSY.LH | 1 | |
17_ | 24K5165 | Panel, arka baba kaplama-Sol | Panel, rear pillar cover-LH | 1 | |
18_ | 24K5193 | Panel, arka baba kapatma-Sol | Panel, rear pillar closed-LH | 1 | |
19_ | 8K10200 | Panel, arka orta-KMPL. | Panel, rear center-ASSY. | 1 | |
21_ | 8K10224 | Panel, arka köşe dış-Sol | Panel, rear corner outer-LH | 1 | |
22_ | K5A1350 | Arka köşe iç panel-Sol | Inner panel, rear corner-LH | 1 | |
23_ | 8K10047 | Dış uzatma paneli-Sol | Panel, outer extension-LH | 1 | |
24_ | 8K10045 | İç uzatma paneli-Sol | Panel, inner extension-LH | 1 | |
3_ | 8K10704 | Seren yan alt parça-Sol | Panel,side lower-LH | 1 | |
4_ | 8K10702 | Seren alt parça-Sol | Panel,lower-LH | 1 | |
5_ | 8K10700 | Seren arka köşe alt-Sol | Panel,rear corner lower-LH | 1 | |
7_ | 8K10488 | Tavan yan çerçevesi-Sol | Roof side frame-LH | 1 |
