BMC FATIH 280
Grup Adı/Group Name :
Arka dingil / Rear axle
Komple Adı/Assy Name :
Terazi mekanizması / L-ride mechanism
7K55573A

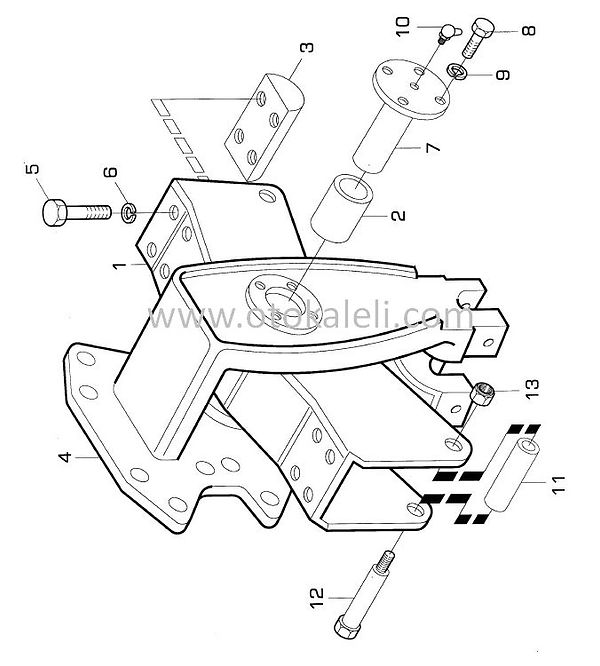

SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
|---|---|---|---|---|---|
1 | 7K10266 | Terazi mekanizması-KMPL. | Bracket, L-Ride-ASSY. | 2 | |
2 | 7K10181 | Burç | Bushing | 2 | |
3 | 7K11422 | Takoz | Saddle | 4 | |
4 | 7K10165 | Kulak,arka makas-Arka | Bracket,rear spring-Rear | 2 | |
5 | SH114251 | Cıvata | Screw | 8 | |
6 | WL114002 | Yaylı rondela | Washer, spring | 16 | |
7 | 7K10180 | Perno-KMPL. | Pin-ASSY. | 1 | |
8 | SH606101 | Cıvata | Screw | 4 | |
9 | WL600062 | Yaylı rondela | Washer, spring | 4 | |
10 | LN010101 | Gresörlük | Greaser | 1 | |
11 | 7K10260 | Burç | Bushing | 6 | |
12 | BH608441 | Cıvata | Bolt | 6 | |
13 | NV608041 | Sıkmalı somun | Nut, lock | 6 |
Önceki Sayfa/ Previous Page
Sonraki Sayfa/ Next Page
Sayfa/Page
97
