BMC PRO 518 (CUMMINS EURO 1)
Grup Adı/Group Name :
Motor / Engine
Komple Adı/Assy Name :

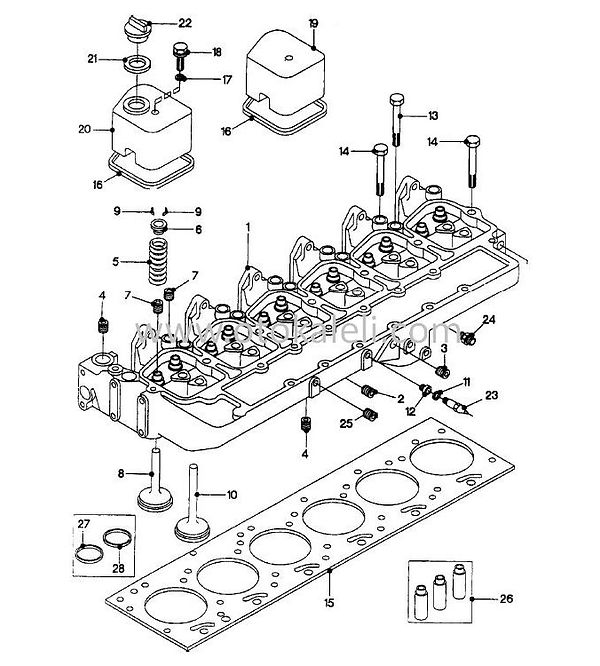

Silindir kapağı / Cylinder head
57RS302709
SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
---|---|---|---|---|---|
1 | 57RS300227 | Silindir kapağı-KMPL. | Cylinder head-ASSY. | 1 | |
2 | 9P903194 | Körtapa | Plug | 1 | |
3 | 9P901501 | Tapa, boru | Plug, pipe | 2 | |
4 | 9P901826 | Tapa | Plug | 5 | |
5 | 9P901635 | Subap yayı, emme | Valve spring, intake | 6 | |
5 | 9P901652 | Subap yayı, egzoz | Valve spring, exhaust | 6 | |
6 | 9P902439 | Subap tablası | Retainer, valve spring | 12 | |
7 | 9P901564 | Subap keçesi | Seal, valve | 12 | |
8 | 9P901654 | Emme subabı | Valve, intake | 6 | |
9 | 9P901447 | Subap tırnağı | Collet | 24 | |
10 | 9P901655 | Egzoz subabı | Valve, exhaust | 6 | |
11 | M4E2019 | Rondela | Washer | 1 | |
12 | 3K16538 | Rakor, adaptör | Connector, adapter | 1 | |
13 | 9P901560 | Cıvata | Bolt | 6 | |
14 | 9P901561 | Cıvata | Bolt | 14 | |
14 | 9P901562 | Cıvata | Bolt | 6 | |
15 | 9P901827 | Conta | Gasket | 1 | |
16 | 9P901642 | Conta | Gasket | 6 | ESKİ TİP/OLD TYPE |
16 | 9P904346 | Conta | Gasket | 6 | YENİ TİP/NEW TYPE |
17 | 9P914186 | O-Ring | O-Ring | 6 | |
18 | 9P901503 | Cıvata | Bolt | 6 | |
19 | 9P913680 | Kapak | Cover | 5 | |
20 | 9P914706 | Kapak, külbütör | Cover, rocker | 1 | |
21 | 9P901639 | Keçe | Seal ring | 1 | |
22 | 9P919403 | Kapak, yağ doldurma | Cap, oil filler | 1 | YENİ TİP/NEW TYPE |
22 | 9P901474 | Kapak, yağ doldurma | Cap, oil filler | 1 | ESKİ TİP/OLD TYPE |
23 | 3K11853 | Hararet müşiri | Temperature sensor | 1 | (Alt.) |
23 | 3K201747 | Hararet müşiri | Temperature sensor | 1 | |
23 | 3K98522 | Hararet müşiri | Temperature sensor | 1 | (Alt.) |
24 | K0E2001 | Dirsek rakor | Elbow connector | 1 | |
25 | 9P901393 | Tapa | Plug | 1 | |
26 | 9P901489 | Egzoz subap kılavuzu | Guide, valve stem-Exhaust | 6 | Servis/Service |
26 | 9P901488 | Emme subap kılavuzu | Guide, valve stem-Intake | 6 | Servis/Service |
27 | 2K12570 | Baga-Emme | Insert-Intake | 6 | Servis/Service(0.254mm.O/S) |
27 | 2K12047 | Baga, emme | Insert, intake | 6 | (STD) ESKİ TİP/OLD TYPE |
27 | 2K12572 | Baga-Emme | Insert-Intake | 6 | Servis/Service(0.508mm.O/S) |
27 | 57RS302373 | Baga, emme | Insert, intake | 6 | (STD) YENİ TİP/NEW TYPE |
28 | 2K12576 | Baga-Egzoz | Insert-Exhaust | 6 | Servis/Service(0.508mm.O/S) |
28 | 57RS302374 | Baga, egzoz | Insert, exhaust | 6 | (STD) YENİ TİP/NEW TYPE |
28 | 2K12574 | Baga-Egzoz | Insert-Exhaust | 6 | Servis/Service(0.254mm.O/S) |
28 | 2K12049 | Baga, egzoz | Insert, exhaust | 6 | (STD) ESKİ TİP/OLD TYPE |
x15 | 9P901505 | Conta | Gasket | 1 | Servis/Service |
x15 | 9P901504 | Conta | Gasket | 1 | Servis/Service |
