BMC PRO 518 (CUMMINS EURO 1)

Grup Adı/Group Name  :

Şasi ve sürücü kabini / Chassis & cab

Komple Adı/Assy Name :

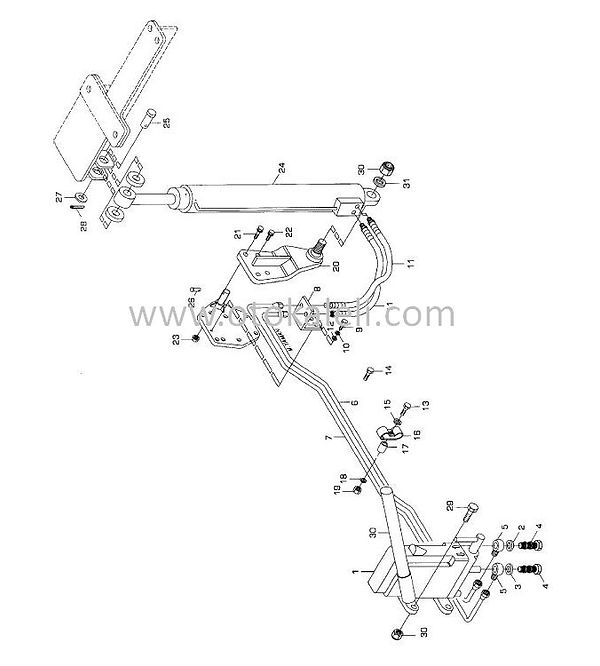

Kabin hidrolik kaldırma sistem / Cab hydraulic tilting system

52RS007367

SEKIL/FIG
PARCA KODU / PART CODE
PARCA ADI
PART NAME
MIKTAR / QTY.
ACIKLAMA / REMARK
1
8K200017
Kep devirme krikosu-KMPL.
Hydraulic pump-ASSY.
1
2
K5C8152
Bakır rondela-Kep devir.kriko.
Washer-Hydraulic pump
2
3
11F123
Rondela
Washer
2
4
8K98326
Banjo cıvata,kep devirme kriko
Banjo-Hydraulic pump
2
5
8K98333
Banjo, kep devirme krikosu
Banjo-Hydraulic pump
2
6
52RS004108
Boru-KMPL.Kep kaldırma
Pipe-ASSY.
1
7
52RS004110
Boru-KMPL.Kep indirme
Pipe-ASSY.
1
8
5K99006
Braket-Boru bağl.kep
Bracket-Pipe mount.cab
1
9
SH106201
Cıvata
Screw
2
10
WL106002
Yaylı rondela
Washer, spring
2
11
8K200024
Hortum-Kriko silindir
Hose-Hyd.pump cylinder
2
12
WA110061
Düz rondela
Washer, plain
2
13
BH604141
Cıvata
Bolt
2
14
BH604161
Cıvata
Bolt
1
15
PWZ204
Düz rondela
Washer, plain
6
16
CP106081
Klips
Clip
6
17
T4A5018
Mesafe parçası
Spacer
3
18
WL600042
Yaylı rondela
Washer, spring
3
19
NH604041
Somun
Nut
3
20
8K93066
Braket, hidro.silindir şasiye
Bracket-Hyd.cylinder chassis
1
21
FB110091
Şapkalı cıvata
Bolt, cap
2
22
FS110351
Şapkalı cıvata
Bolt,cap
2
23
FX110041
Şapkalı somun
Nut, cap
2
24
8K15363
Kep devirme silindiri
Cylinder,hydraulic
1
25
K8C3102
Pim, uzun
Pin-Long-Cylinder cab tilting
1
26
K8C3112
Pim, kısa
Pin,short
1
27
WA116101
Düz rondela
Washer, plain
2
28
PS608081
Kopilya
Split pin
2
29
SH110351
Cıvata
Screw
4
30
NV110041
Sıkmalı somun
Nut, lock
5
31
WC116101
Rondela
Washer
1
32
52RS003293
Hidrolik kriko kolu
Arm, hydraulic jack
1

Önceki Sayfa/ Previous Page

Sonraki Sayfa/ Next Page

Sayfa/Page

99
