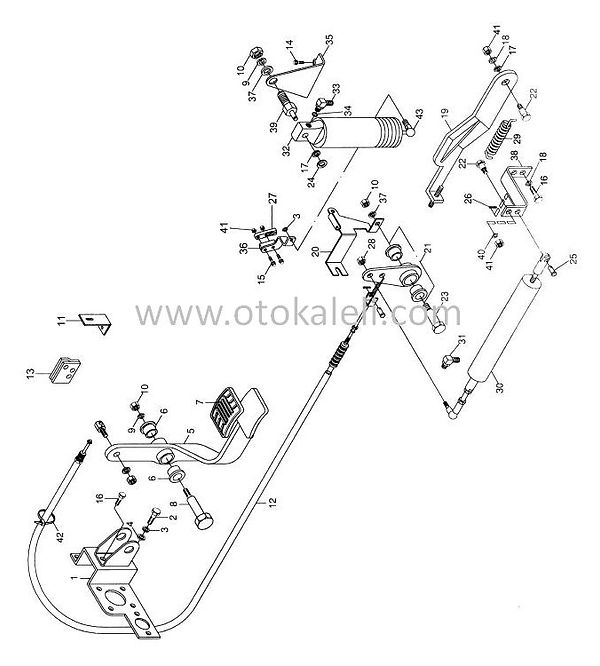

BMC PRO 624 ZHT

Grup Adı/Group Name  :

Yakit sistemi / Fuel system

Komple Adı/Assy Name :

Motor kontrol sistemi / Engine control system

52RS015635

SEKIL/FIG
PARCA KODU / PART CODE
PARCA ADI
PART NAME
MIKTAR / QTY.
ACIKLAMA / REMARK
1
52RS000578
Braket-KMPL.Gaz pedalı tespit
Bracket-ASSY.Accelerator pedal
1
2
SH108201
Cıvata
Screw
6
3
WL108002
Yaylı rondela
Washer, spring
6
4
WA108051
Düz rondela
Washer, plain
6
5
52RS011109
Gaz pedalı, montajlı-KMPL.
Accelerator pedal, mount-ASSY.
1
6
K5C6023
Naylon burç
Bush, plastic
2
7
51RS801121
Pedal lastiği
Pedal rubber
1
8
2K97493
Cıvata, gaz pedalı
Bolt, accelerator pedal
1
9
WL110002
Yaylı rondela
Washer, spring
1
10
NH110041
Somun
Nut
1
11
2K201935
Braket
Bracket
1
12
52RS010980
Gaz teli-KMPL.
Cable, accelerator-ASSY.
1
13
52RS010948
Braket
Bracket
1
14
FT106201
Şapkalı cıvata
Cap screw
2
15
FT106251
Şapkalı cıvata
Cap screw
2
16
SH106121
Cıvata
Screw
3
17
WA106041
Düz rondela
Washer, plain
2
18
WL600042
Yaylı rondela
Washer, spring
3
19
52RS001207
Braket, hız limitörü
Bracket, speedo limiter
1
20
52RS008722
Braket, gaz teli bağlantı
Bracket, accelerator cable
1
21
52RS002535
Levye, montajlı-KMPL.
Lever, mounting-ASSY.
1
22
2K97288
Pim
Pin
2
23
2K91575
Cıvata
Bolt
1
24
8M91692
Segman
Circlip
1
25
52RS005222
Pim
Pin
1
26
PS103121
Kopilya
Split pin
1
27
57RS302909
Braket, enjektör pompa stop
Bracket, injector pump stop
2
28
NH108041
Somun
Nut
4
29
52RS011089
Yay
Spring
1
30
2K206903
Hız limitörü
Speed limitor
1
31
5K200839
Dirsek
Elbow
1
32
5K54059
Motor kontrol silindiri
Cylinder, exhaust brake cont.
1
33
5K97474
Dirsek
Elbow
1
34
5K97439
Bilezik ve O-Ring
Ring & O-Ring
1
35
2K204559
Braket, montajlı-KMPL.
Bracket, mounting-ASSY.
1
36
2K204547
Levye montajlı-KMPL.
Lever, mounting-ASSY.
1
37
WA110061
Düz rondela
Washer, plain
1
38
52RS008547
Levye
Lever
1
39
2K204539
Pim
Pin
1
40
WL106002
Yaylı rondela
Washer, spring
2
41
NH106041
Somun
Nut
2

Önceki Sayfa/ Previous Page

Sonraki Sayfa/ Next Page

Sayfa/Page

22
