BMC PRO 625 DHT
Grup Adı/Group Name :
Yakit sistemi / Fuel system
![](https://static.wixstatic.com/media/c02bd4_5704bc25c3ff48f89c6847abd10145c2~mv2.png/v1/fill/w_70,h_42,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/c02bd4_5704bc25c3ff48f89c6847abd10145c2~mv2.png)

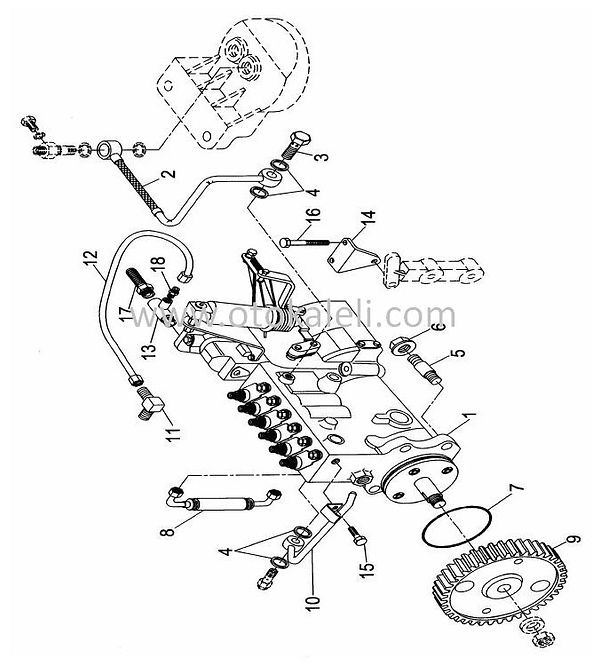

Komple Adı/Assy Name :
Enjektör pompası&bağlantıları / Injector pump & mountings
624OTOLM107J
![](https://static.wixstatic.com/media/c02bd4_4eeff43c154e43b8bd2fc670a7245d46~mv2.jpg/v1/fill/w_600,h_666,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/c02bd4_4eeff43c154e43b8bd2fc670a7245d46~mv2.jpg)
SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
---|---|---|---|---|---|
1 | 9P915162 | Enjektör pompası-KMPL. | Injector pump-ASSY. | 1 | |
2 | 9P916935 | Boru, yakıt kontrol | Pipe, fuel control | 1 | |
3 | 9P901646 | Cıvata, banjo | Screw, banjo | 1 | |
4 | 9P900286 | Keçeli rondela | Washer seal | 4 | |
5 | 9P915163 | Saplama | Stud | 4 | |
6 | 9P900282 | Somun | Nut | 4 | |
7 | 9P900309 | Sızdırmazlık halkası | Sealing,ring | 1 | |
8 | 9P917741 | Hortum, yakıt pompa yağlama | Hose, fuel pump oil | 1 | |
9 | 9P904950 | Dişli, enjektör pompası | Gear, fuel injection pump | 1 | |
10 | 9P901323 | Boru, yağ | Pipe,oil | 1 | |
11 | 9P901513 | Dirsek | Elbow | 1 | |
12 | 9P917742 | Boru, bust basınç kontrol | Pipe, bust control | 1 | |
13 | 9P919116 | T-Adaptör | T-Adapter | 1 | |
14 | 9P917761 | Braket, pompa bağlantı | Bracket, pump mounting | 1 | |
15 | 9P900262 | Cıvata | Bolt | 1 | |
16 | 9P900275 | Cıvata | Bolt | 2 | |
17 | 9P904829 | Kaplin, hava yakıt kont.borusu | Coupling-Tube,air fuel control | 1 | |
18 | 9P901841 | Somun | Nut | 1 |
