BMC PRO 822
Grup Adı/Group Name :
Motor / Engine

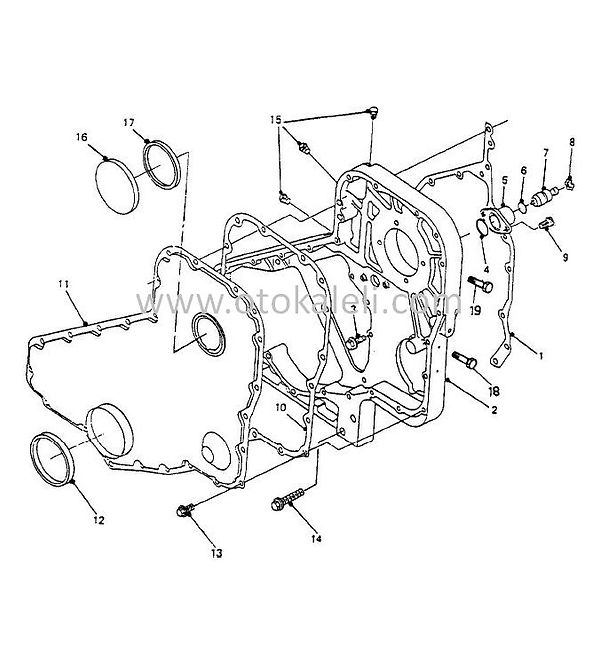

Komple Adı/Assy Name :
Zaman dişli kapağı / Front gear cover
2K92770A
SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
---|---|---|---|---|---|
1 | 9P900073 | Conta | Gasket | 1 | |
2 | 9P900074 | Zaman dişli kapağı gövdesi | Housing,gear | 1 | |
3 | 9P900075 | Cıvata | Bolt | 5 | |
4 | 9P900076 | O-Ring | O-Ring | 1 | |
5 | 9P900077 | Pim kovan | Pin housing | 1 | |
6 | 9P900078 | O-Ring | O-Ring | 1 | |
7 | 9P900079 | Ayar pimi | Pin | 1 | |
8 | 9P900080 | Tespit segmanı | Ring, retainer | 1 | |
9 | 9P900081 | Cıvata | Bolt | 2 | |
10 | 9P900082 | Conta | Gasket | 1 | |
11 | 9P900083 | Dişli kapağı, dış | Cover, gear-Outer | 1 | |
12 | 9P900084 | Keçe, krank mili-Ön | Oil seal | 1 | |
13 | 9P900085 | Cıvata | Bolt | 16 | |
14 | 9P900086 | Cıvata | Bolt | 6 | |
15 | 9P900087 | Tapa | Plug | 3 | |
16 | 9P900088 | Keçe kapağı | Cover, seal | 1 | |
17 | 9P900089 | Keçe | Seal | 1 | |
18 | 9P900090 | Cıvata | Bolt | 2 | |
19 | 9P900091 | Cıvata | Bolt | 4 |
