BMC PRO 827 DCX
Grup Adı/Group Name :
Direksiyon sistemi / Steering system
Komple Adı/Assy Name :

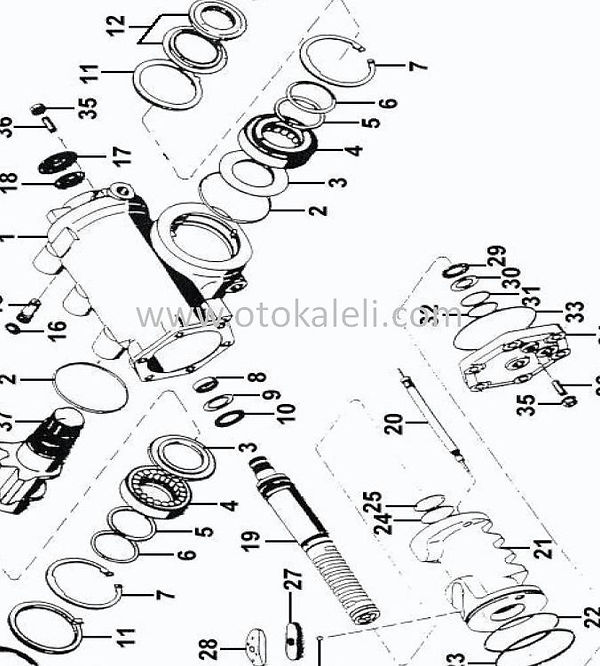

Direksiyon kutusu detayları / Steering case details
52RS000215D
SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
---|---|---|---|---|---|
1 | 9P920761 | Gövde | Body | 1 | |
2 | 9P920762 | O-Ring | O-Ring | 2 | |
3 | 9P920763 | Pul | Washer | 2 | |
4 | 9P920764 | Kapak, gövde | Cover, body | 2 | |
5 | 9P920765 | Sızdırmazlık halkası | Sealing ring | 2 | |
6 | 9P920766 | Destek halkası | Support ring | 2 | |
7 | 9P920767 | Emniyet segmanı | Safety piston ring | 2 | |
8 | 9P920768 | Şaft keçesi | Shaft seal | 1 | |
9 | 9P920769 | Pul | Washer | 1 | |
10 | 9P920770 | Eksenel iğneli yatak | Axial needle bearing | 1 | |
11 | 9P920771 | Sızdırmazlık keçesi | Sealing ring | 2 | |
12 | 9P920772 | Keçe grubu | Seal group | 1 | |
13 | 9P920773 | Kilitleme somunu | Nut, lock | 1 | |
14 | 9P920774 | Koruyucu kapak | Protection cover | 1 | |
15 | 9P920775 | Basınç emniyet valfi | Valve, by-pass | 1 | |
16 | 9P920776 | O-Ring | O-Ring | 1 | |
17 | 9P920777 | Koruyucu kapak | Protection cover | 1 | |
18 | 9P920778 | Sızdırmazlık keçesi | Sealing ring | 1 | |
19 | 9P920779 | Sonsoz vidalı mil | Shaft | 1 | |
20 | 9P920780 | Valf-KMPL. | Valve-ASSY. | 1 | |
21 | 9P920781 | Piston | Piston | 1 | |
22 | 9P920782 | O-Ring | O-Ring | 1 | |
23 | 9P920783 | Destek halkası | Support ring | 1 | |
24 | 9P920784 | Destek halkası | Support ring | 1 | |
25 | 9P920785 | Destek halkası | Support ring | 1 | |
26 | 9P920786 | Bilya | Ball | 37 | 7.003 |
26 | 9P920788 | Bilya | Ball | 37 | 7.007 |
26 | 9P920791 | Bilya | Ball | 37 | 7.012 |
26 | 9P920790 | Bilya | Ball | 37 | 7.01 |
26 | 9P920792 | Bilya | Ball | 37 | 7.013 |
26 | 9P920787 | Bilya | Ball | 37 | 7.005 |
27 | 9P920793 | Keçe grubu | Seal group | 1 | |
28 | 9P920794 | Koruyucu kapak | Protection cover | 1 | |
29 | 9P920795 | Eksenel iğneli yatak | Axial needle bearing | 1 | |
30 | 9P920807 | Ayar pulu | Washer, adjusting | 1 | (25 x 39 x 2.44) |
30 | 9P920796 | Ayar pulu | Washer, adjusting | 1 | (25 x 39 x 2.41) |
30 | 9P920810 | Ayar pulu | Washer, adjusting | 1 | (25 x 39 x 2.47) |
30 | 9P920806 | Ayar pulu | Washer, adjusting | 1 | (25 x 39 x 2.43) |
30 | 9P920808 | Ayar pulu | Washer, adjusting | 1 | (25 x 39 x 2.45) |
30 | 9P920809 | Ayar pulu | Washer, adjusting | 1 | (25 x 39 x 2.46) |
30 | 9P920805 | Ayar pulu | Washer, adjusting | 1 | (25 x 39 x 2.42) |
31 | 9P920797 | Destek halkası | Support ring | 1 | |
32 | 9P920798 | O-Ring | O-Ring | 1 | |
33 | 9P920799 | O-Ring | O-Ring | 1 | |
34 | 9P920800 | Silindir kapağı | Cylinder head | 1 | |
35 | 9P920801 | Somun | Nut | 2 | |
36 | 9P920802 | Ayar cıvatası | Screw, adjusting | 2 | |
37 | 9P920803 | Sektör mili | Sector shaft | 1 | |
* | 9P920804 | Keçe tamir takımı | Repair set, seals | 1 |
