BMC PRO 827 DHF
Grup Adı/Group Name :
Arka dingil / Rear axle

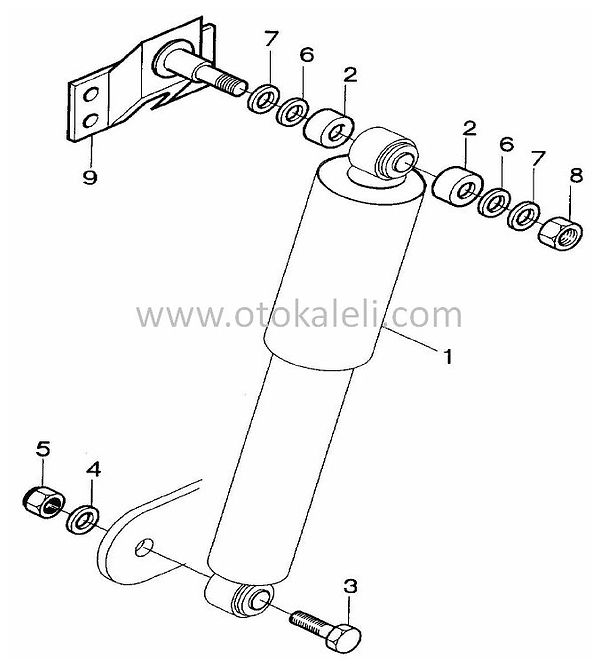

Komple Adı/Assy Name :
Arka amortisör / Shock absorber, rear
7K91326DD2
SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
---|---|---|---|---|---|
1 | 52RS003211 | Arka amortisör-KMPL. | Shock absorber, rear-ASSY. | 2 | |
2 | K1C1006 | Lastik takoz | Rubber cushion | 8 | |
3 | 7K89577 | Özel cıvata | Special bolt | 2 | |
4 | 7K89888 | Düz rondela | Washer, plain | 2 | |
5 | NV116041 | Sıkmalı somun | Nut, lock | 2 | |
6 | 7K89888 | Düz rondela | Washer, plain | 2 | |
7 | 7K89889 | Düz rondela | Washer, plain | 2 | |
8 | NV116041 | Sıkmalı somun | Nut, lock | 2 | |
9 | 7K98370 | Braket, arka amortisör | Bracket, rear shock absorber | 2 | (REF:12/1) |
Önceki Sayfa/ Previous Page
Sonraki Sayfa/ Next Page
Sayfa/Page
76
