BMC PRO 827 FTB
Grup Adı/Group Name :
Vites kutusu / Gearbox
Komple Adı/Assy Name :
Gövde (zf 9s 109) / Housing (zf 9s 109)
4K208257-15

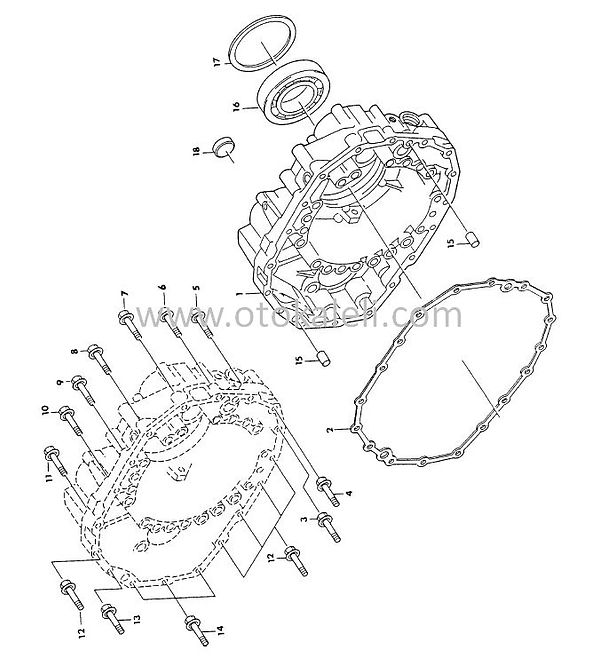

SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
|---|---|---|---|---|---|
1 | 9P909426 | Gövde, arka | Body, rear | 1 | NMV130E |
1 | 9P904339 | Gövde-Arka | Housing-Rear | 1 | ESKİTİP/OLDTYPE |
2 | 9P909427 | Conta | Gasket | 1 | NMV130E |
2 | 9P902110 | Conta | Gasket | 1 | ESKİTİP/OLDTYPE |
3 | 9P909428 | Cıvata | Bolt | 2 | NMV130E |
3 | 9P902111 | Cıvata | Bolt | 1 | (M10x50)ESKİTİP/OLDTYPE |
4 | 9P902112 | Cıvata | Bolt | 1 | (M10x50)ESKİTİP/OLDTYPE |
4 | 9P909428 | Cıvata | Bolt | 1 | NMV130E |
5 | 9P909403 | Cıvata | Bolt | 1 | NMV130E |
5 | 9P902111 | Cıvata | Bolt | 1 | (M10x50)ESKİTİP/OLDTYPE |
6 | 9P909429 | Cıvata | Bolt | 1 | NMV130E |
6 | 9P902111 | Cıvata | Bolt | 1 | (M10x50)ESKİTİP/OLDTYPE |
7 | 9P902111 | Cıvata | Bolt | 1 | (M10x50)ESKİTİP/OLDTYPE |
7 | 9P909403 | Cıvata | Bolt | 1 | NMV130E |
8 | 9P902111 | Cıvata | Bolt | 1 | (M10x50)ESKİTİP/OLDTYPE |
8 | 9P909403 | Cıvata | Bolt | 1 | NMV130E |
9 | 9P902111 | Cıvata | Bolt | 1 | (M10x50)ESKİTİP/OLDTYPE |
9 | 9P909428 | Cıvata | Bolt | 1 | NMV130E |
10 | 9P909428 | Cıvata | Bolt | 1 | NMV130E |
10 | 9P902111 | Cıvata | Bolt | 1 | (M10x50)ESKİTİP/OLDTYPE |
11 | 9P902111 | Cıvata | Bolt | 1 | (M10x50)ESKİTİP/OLDTYPE |
11 | 9P909403 | Cıvata | Bolt | 1 | NMV130E |
12 | 9P902111 | Cıvata | Bolt | 5 | (M10x50)ESKİTİP/OLDTYPE |
12 | 9P909403 | Cıvata | Bolt | 4 | NMV130E |
13 | 9P902111 | Cıvata | Bolt | 1 | (M10x50)ESKİTİP/OLDTYPE |
13 | 9P909403 | Cıvata | Bolt | 1 | NMV130E |
14 | 9P909403 | Cıvata | Bolt | 3 | NMV130E |
14 | 9P902111 | Cıvata | Bolt | 3 | (M10x50)ESKİTİP/OLDTYPE |
15 | 9P901893 | Rulman | Bearing | 2 | |
16 | 9P902113 | Rulman | Ball bearing | 1 | ESKİTİP/OLDTYPE |
16 | 9P901893 | Rulman | Bearing | 1 | NMV130E |
17 | 9P909439 | Şim | Shim | 1 | (A=1.30)NMV130E |
17 | 9P909433 | Şim | Shim | 1 | (A=1.90)NMV130E |
17 | 9P902115 | Şim | Shim | 1 | (A=1.80) |
17 | 9P909437 | Şim | Shim | 1 | (A=1.50)NMV130E |
17 | 9P909432 | Şim | Shim | 1 | (A=2.00)NMV130E |
17 | 9P902117 | Şim | Shim | 1 | (A=1.60) |
17 | 9P902114 | Şim | Shim | 1 | (A=1.90) |
17 | 9P909436 | Şim | Shim | 1 | (A=1.60)NMV130E |
17 | 9P909438 | Şim | Shim | 1 | (A=1.40)NMV130E |
17 | 9P909431 | Şim | Shim | 1 | (A=2.10)NMV130E |
17 | 9P909435 | Şim | Shim | 1 | (A=1.70)NMV130E |
17 | 9P909434 | Şim | Shim | 1 | (A=1.80)NMV130E |
17 | 9P902119 | Şim | Shim | 1 | (A=1.40) |
17 | 9P902116 | Şim | Shim | 1 | (A=1.70) |
17 | 9P902118 | Şim | Shim | 1 | (A=1.50) |
17 | 9P909430 | Şim | Shim | 1 | (A=2.20)NMV130E |
17 | 9P902120 | Şim | Shim | 1 | (A=1.30) |
18 | 9P902121 | Sızdırmazlık halkası | Sealing cap | 1 | |
1-18 | 9P902108 | Gövde-KMPL. | Housing-ASSY. | 1 |
