BMC PRO 827 LDT

Grup Adı/Group Name  :

Şasi ve sürücü kabini / Chassis & cab

Komple Adı/Assy Name :

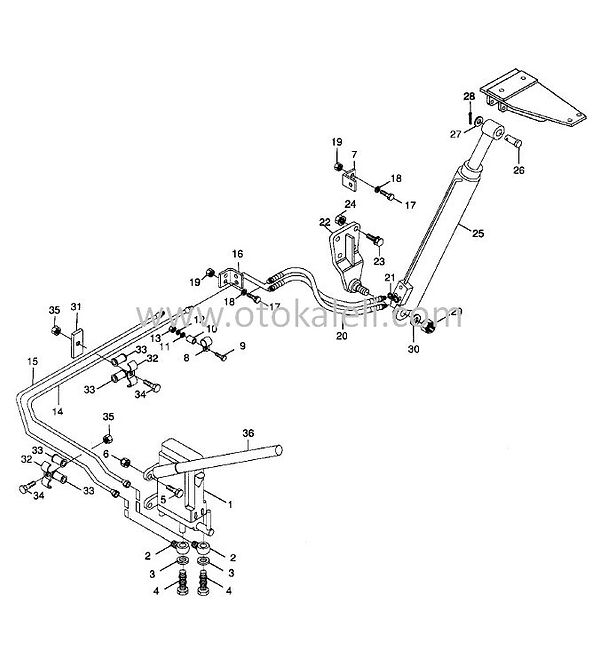

Kabin hidrolik kaldırma sistem / Cab hydraulic tilting system

8K91963L

SEKIL/FIG
PARCA KODU / PART CODE
PARCA ADI
PART NAME
MIKTAR / QTY.
ACIKLAMA / REMARK
1
8K200017
Kep devirme krikosu-KMPL.
Hydraulic pump-ASSY.
1
2
8K98333
Banjo, kep devirme krikosu
Banjo-Hydraulic pump
2
3
K5C8152
Bakır rondela-Kep devir.kriko.
Washer-Hydraulic pump
2
4
8K98326
Banjo cıvata,kep devirme kriko
Banjo-Hydraulic pump
2
5
SH110351
Cıvata
Screw
4
6
NV110041
Sıkmalı somun
Nut, lock
4
7
8K98355
Braket, hortum tespit
Bracket,hose mount.
1
8
CP106081
Klips
Clip
2
9
BH604121
Cıvata
Bolt
2
10
T4A5018
Mesafe parçası
Spacer
2
11
WL600042
Yaylı rondela
Washer, spring
2
12
PWZ204
Düz rondela
Washer, plain
2
13
NH604041
Somun
Nut
2
14
5K205481
Boru-KMPL.
Pipe-ASSY.
1
15
5K205482
Boru-KMPL.
Pipe-ASSY.
1
16
5K99006
Braket-Boru bağl.kep
Bracket-Pipe mount.cab
1
17
BH110071
Cıvata
Bolt
2
18
WL110002
Yaylı rondela
Washer, spring
2
19
NH110041
Somun
Nut
2
20
8K200024
Hortum-Kriko silindir
Hose-Hyd.pump cylinder
2
21
WA110061
Düz rondela
Washer, plain
2
22
8K93066
Braket, hidrolik silindir
Bracket, hydraulic cylinder
1
23
FB110091
Şapkalı cıvata
Cap screw
4
24
FX110041
Şapkalı somun
Cap nut
4
25
8K63946
Devirme silindiri
Cylinder,cab tilting
1
26
K8C3102
Pim, uzun
Pin-Long-Cylinder cab tilting
1
27
WA116101
Düz rondela
Washer, plain
1
28
PS608101
Kopilya
Split pin
1
29
NV110041
Sıkmalı somun
Nut, lock
1
30
PWZ206
Rondela
Washer
1
31
52RS000044
Pleyt-Kabin hidr.kald.sistemi
Plate-Cab tilting system
1
32
CP106061
Klips
Clip
2
33
T4A5018
Mesafe parçası
Spacer
4
34
BH604141
Cıvata
Bolt
2
35
NH604041
Somun
Nut
2
36
8K57649
Hidrolik kriko kolu
Hydraulic jack lever
1

Önceki Sayfa/ Previous Page

Sonraki Sayfa/ Next Page

Sayfa/Page

126
