BMC PRO 832 YCX
Grup Adı/Group Name :
Debriyaj / Clutch
Komple Adı/Assy Name :
Debriyaj / Clutch
4K86189A

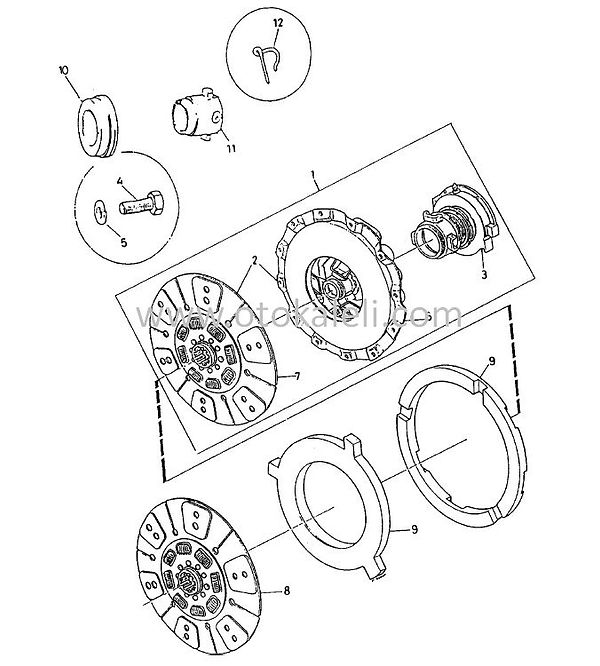

SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
---|---|---|---|---|---|
1 | 4K55390 | Baskı disk-KMPL.(Adaptörlü) | Cover,clutch-Driven plate-ASSY | 1 | |
2 | 4K85307 | Baskı disk-KMPL.(Adaptörsüz) | Cover clutch,driven plate-ASSY | 1 | |
3 | 4K61703 | Adaptör | Adapter | 1 | |
4 | BH506101 | Cıvata | Bolt | 12 | |
5 | WL600062 | Yaylı rondela | Washer, spring | 12 | |
6 | 4K55388 | Baskı | Cover, clutch | 1 | |
7 | 4K55389 | Disk | Driven plate | 1 | |
8 | 4K85309 | Disk | Driven plate | 1 | |
9 | 4K85308 | Ara pleyt | Plate, intermediate | 1 | |
10 | 4K87758 | Debriyaj rulmanı | Bearing, clutch release | 1 | (Alt.) |
10 | 9P903037 | Debriyaj rulmanı | Clutch bearing | 1 | |
11 | 4K85428 | Kovan | Sleeve | 1 | |
12 | 61K5648 | Tutucu yay | Spring, retain | 2 |
