BMC PRO 935 DHF
Grup Adı/Group Name :
Motor / Engine
Komple Adı/Assy Name :

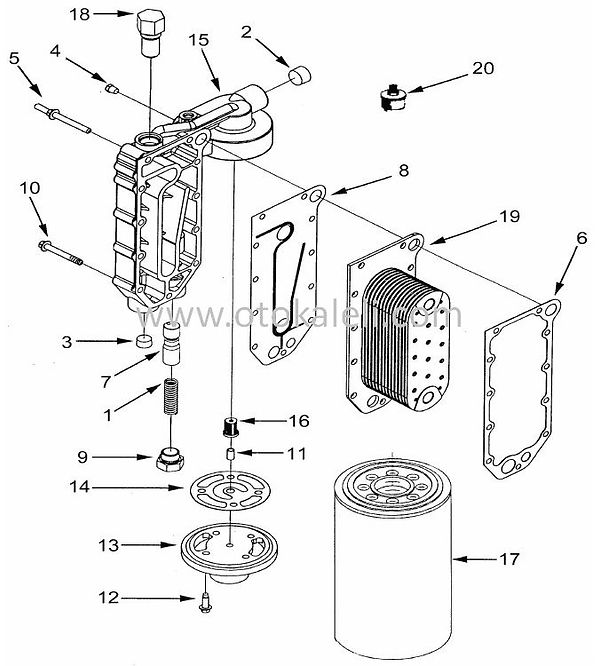

Motor yağı soğutucusu / Engine oil cooler
935OTOLM02J
SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
|---|---|---|---|---|---|
1 | 9P919224 | Yay | Spring | 1 | |
2 | 9P903194 | Körtapa | Plug | 1 | (3/4NPT) |
3 | 9P900004 | Tapa | Plug | 1 | (1/2NPT) |
4 | 9P901501 | Tapa, boru | Plug, pipe | 1 | (1/8NPT) |
5 | 9P917887 | Cıvata | Screw | 3 | (M8x1.25x65) |
6 | 9P900181 | Conta | Gasket | 1 | |
7 | 9P909482 | Basınç ayar plancırı | Pressure adjusting plunger | 1 | |
8 | 9P900183 | Conta | Gasket | 1 | |
9 | 9P901393 | Tapa | Plug | 1 | |
10 | 9P918562 | Cıvata | Bolt | 8 | |
11 | 9P917491 | Merkezleme halkası | Dowel, ring | 1 | |
12 | 9P917489 | Cıvata | Screw | 4 | (M8x1.25x25) |
13 | 9P920376 | Kapak, yağ filtre | Head, lub oil filter | 1 | |
14 | 9P917888 | Conta, filtre kapağı | Gasket, filter head | 1 | |
15 | 9P919225 | Kapak, filtre | Cover, filter | 1 | |
16 | 9P909043 | Basınç emniyet valfi | Pressure relief valve | 1 | |
17 | 9P907719 | Yağ filtre elemanı | Oil filter element | 1 | |
18 | 9P904703 | Adaptör rakor | Adapter connector | 1 | |
19 | 9P919226 | Soğutucu | Cooler | 1 | |
20 | 52RS005989 | Yağ basınç müşiri | Oil pressure sensor | 1 |
