BMC PRO 935 DHF
Grup Adı/Group Name :
Fren sistemi / Brake system
Komple Adı/Assy Name :

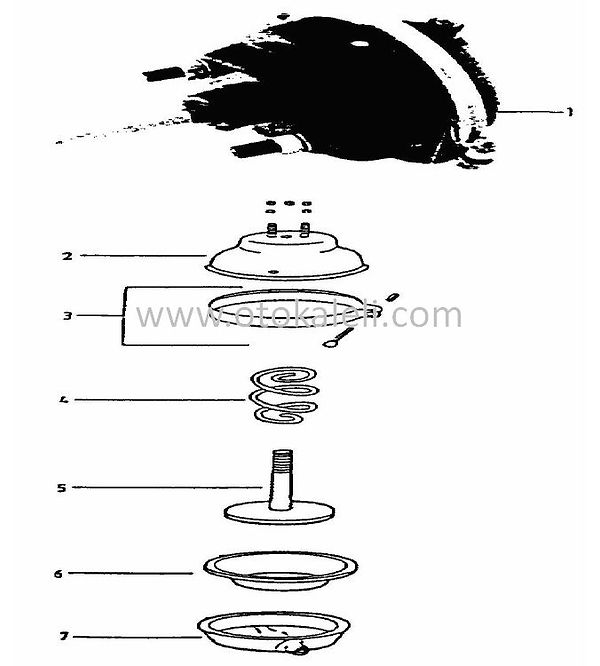

2.ci dingil fren körüğü / Second axle brake chamber
5K98049DD
SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
|---|---|---|---|---|---|
1 | 57RS306146 | Dingil fren körüğü-KMPL.Sağ | Brake chamber-ASSY.RH | 1 | |
1 | 5K90692 | Arka dingil fren körüğü-Sol | Rear axle brake chamber-LH | 1 | |
1 | 5K89015 | Arka dingil fren körüğü-Sağ | Rear axle brake chamber-RH | 1 | |
1 | 57RS306659 | 4.dingil fren körüğü-KMPL. | 4th.axle brake chamber-ASSY. | 1 | |
1 | 57RS306148 | Dingil fren körüğü-KMPL.Sağ | Brake chamber-ASSY.RH | 1 | |
2 | 9P901239 | Gövde-KMPL. | Body-ASSY. | 1 | |
3 | 9P901204 | Kelepçe | Clamp | 1 | |
4 | 9P901207 | Yay geri getirme | Spring, return | 1 | |
5 | 9P901242 | Flanş-KMPL. | Flange-ASSY. | 1 | |
6 | 9P901205 | Diyafram | Diaphragm | 1 | |
7 | 9P901243 | Kapak-KMPL. | Cover-ASSY. | 1 | |
1_ | 57RS306137 | Dingil fren körüğü-KMPL.Sol | Brake chamber-ASSY.LH | 1 | |
1_ | 57RS306147 | Dingil fren körüğü-KMPL.Sol | Brake chamber-ASSY.LH | 1 |
Önceki Sayfa/ Previous Page
Sonraki Sayfa/ Next Page
Sayfa/Page
78
