BMC PRO 935 ZHF

Grup Adı/Group Name  :

Fren sistemi / Brake system

Komple Adı/Assy Name :

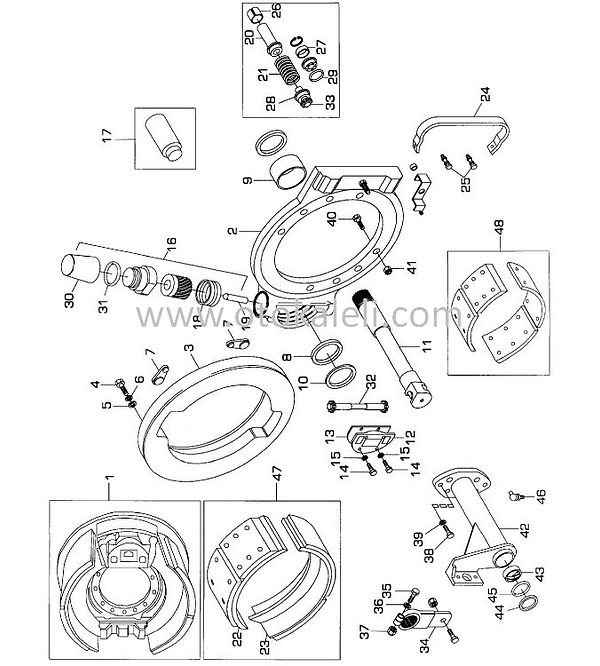

Arka 1.&2.dingil fren tablası / Rear 1st.&2nd.axle brake plate

5K97463SZ

SEKIL/FIG
PARCA KODU / PART CODE
PARCA ADI
PART NAME
MIKTAR / QTY.
ACIKLAMA / REMARK
1
5K204459
Fren tablası, arka-Sağ
Brake plate, rear-RH
1
(Arka 2.Dingil/2.axle)
1
5K204456
Fren tablası, arka-Sol
Brake plate, rear-LH
1
(Arka 1.Dingil/1.axle)
1
5K204455
Fren tablası, arka-Sağ
Brake plate, rear-RH
1
(Arka 1.Dingil/1.axle)
1
5K204458
Fren tablası, arka-Sol
Brake plate, rear-LH
1
(Arka 2.Dingil/2.axle)
2
9P903541
Tork pleyt-KMPL.Sağ.
Torque plate-ASSY.RH
1
3
57RS300925
Toz sacı-Sol
Dust sheet-LH
2
3
57RS300923
Toz sacı-Sağ
Dust sheet-RH
2
4
SH106121
Cıvata
Screw
10
5
5K203843
Rondela, özel
Washer
10
6
57RS302514
Özel cıvata
Special bolt
10
7
5K60145
Toz lastiği
Dust rubber
8
8
9P901015
Keçe
Seal
4
9
9P901223
Burç
Bush
2
10
9P901248
Gezinti yatağı
Thrust washer
2
11
9P903544
Hareket mili-Sol
Operating shaft-LH
1
12
9P901178
Kapak
Cover plate
2
13
9P901216
Conta
Gasket
2
14
9P901016
Vida
Screw
8
15
9P901021
Yaylı rondela
Washer, spring
8
16
9P901225
Otoma.ayar mek.KMPL.Sol
Auto adjust, outer-ASSY.LH
2
17
9P901230
Gres,1 poşet
Grease,1 sachet
4
18
9P901258
Toz keçesi
Dirt excluder
4
19
9P901014
İtici pim
Strut
4
20
9P906850
Ayar kolu
Adjusting lever
1
21
9P901228
Sıkıştırma yayı-Sol
Compression spring-LH
1
22
9P903532
Pabuç, balata-KMPL.Üst
Shoe, lining-ASSY.Leading
2
(22.5İnç.)
23
9P903533
Pabuç, balata-KMPL.Alt
Shoe, lining-ASSY.Trailing
2
(22.5İnç.)
24
9P901265
C-yayı
C-Spring
2
25
9P901233
Mesnet pimi
Abutment pin
4
26
9P901226
Toz kapağı
Dust cover
1
27
9P901236
Tapa
Plug
1
28
9P901235
Keçe
Seal
2
29
9P901105
O-Ring
O-Ring
2
30
9P901217
İtici kapağı
Tappet cover
2
31
9P901104
O-Ring
O-Ring
4
32
9P901218
İrtibatlandırma mili-KMPL.
Cross shaft-ASSY.
1
33
9P901221
Pinyon dişli,Sol
Pinion gear-LH
1
34
5K17644
Fren körüğü levyesi-KMPL.
Lever-ASSY.
2
35
BH607241
Cıvata
Bolt
2
36
WL600072
Yaylı rondela
Washer, spring
2
37
NH607041
Somun
Nut
2
38
SH114401
Cıvata
Screw
8
39
WL114002
Yaylı rondela
Washer, spring
8
40
5K60748
Özel cıvata
Special bolt
48
41
NV216041
Sıkmalı somun
Nut, lock
48
42
5K88876
Braket, fren körüğü bağl-Sol
Bracket, brake chamber-LH
1
43
5K17643
Burç
Bushing
2
44
5K17647
Keçe
Seal ring
2
45
5K17646
O-Ring
O-Ring
2
46
5K51520
Grasörlük
Greaser
2
47
9P908067
Pabuç, balata-KMPL.Alt-Üst
Shoe, lining-ASSY.Lower-Upper
1
48
9P910892
Fren balatası
Brake lining
1
1-48
5K204460
Fren tabla seti-Arka
Brake plate set-Rear
1
(Arka 2.Dingil/2.axle)
1-48
5K204457
Fren tabla seti-Arka
Brake plate set-Rear
1
(Arka 1.Dingil/1.axle)
11_
9P903543
Hareket mili-Sağ
Operating shaft-RH
1
16_
9P901224
Otoma.ayar mek.KMPL.Sağ
Auto adjust, outer-ASSY.RH
2
21_
9P901229
Sıkıştırma yayı-Sağ
Compression spring-RH
1
2_
9P903542
Tork pleyt-KMPL.Sol
Torque plate-ASSY.LH
1
33_
9P901222
Pinyon dişli,Sağ
Pinion gear-RH
1
42_
5K88875
Braket, fren körüğü bağl-Sağ
Bracket, brake chamber-RH
1
